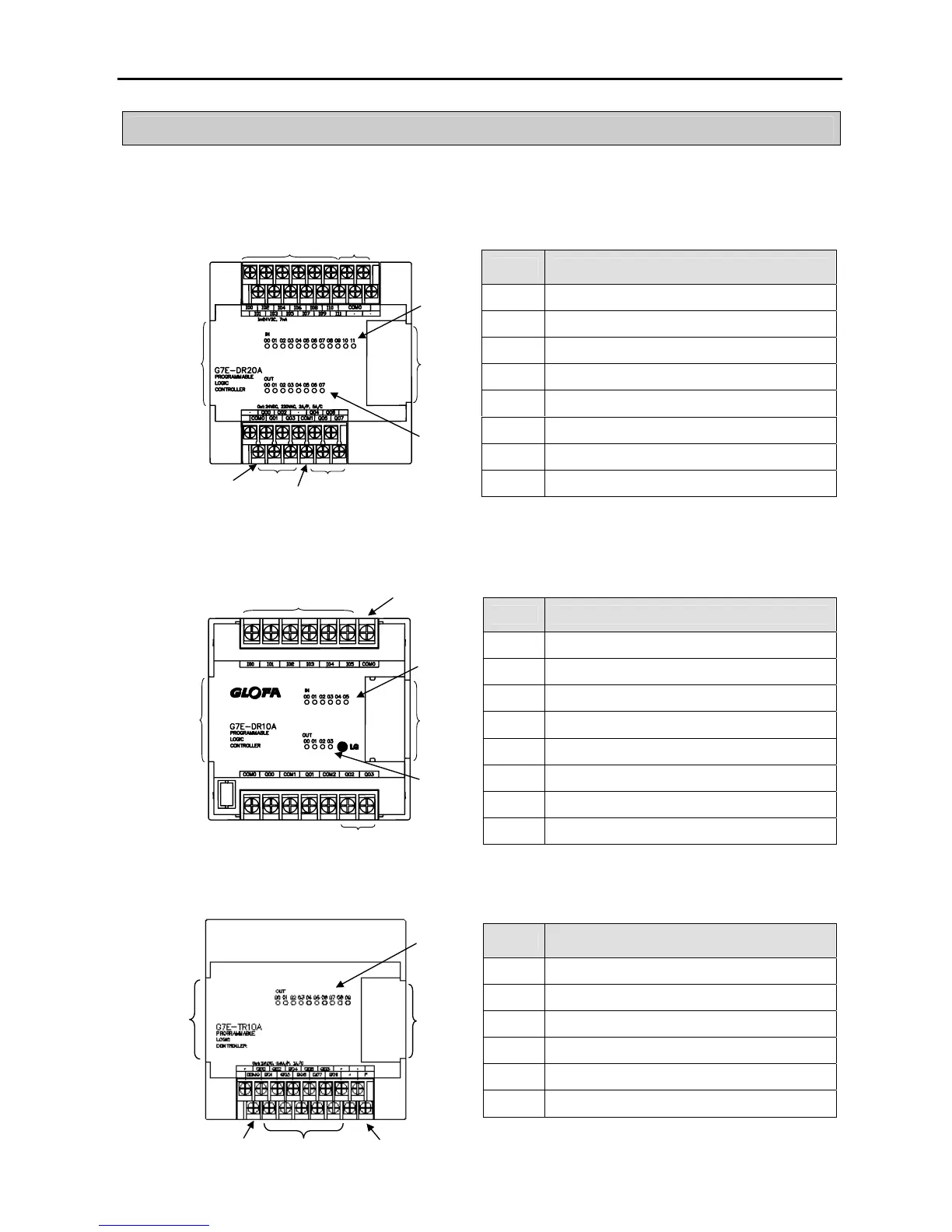

4.2 Expansion I/O Module
4.2.1 20points I/O Module
1) G7E-DR20A
4.2.2 10points I/O Module
1) G7E-DR10A
1) G7E-TR10A
No. Names
① Input LED
② Output LED
③ Input contact
④ Input common terminal
⑤ Output contact
⑥ Output common terminal
⑦ Expansion cable
⑧ Expansion Cable Connecting Terminal
No. Names
① Input LED
② Output LED
③ Input contact
④ Input common terminal
⑤ Output contact
⑥ Output common terminal
⑦ Expansion cable
⑧ Expansion Cable Connecting Terminal
No. Names
① Output LED
② Output contact
③ Output common terminal
④ External Power Supply Terminal (DC24V)
⑤ Expansion cable
⑥ Expansion Cable Connecting Terminal
