Chapter 8 Communication Functions
8-6
Remark
1) The numerical data of all frames are ASCII codes equal to hexadecimal value, if there’s no clear statement.
The terms in hexadecimal are as follows.
• Station No.
• When the main command is R(r) or W (w) and the command type is numerical (means a data type)
• All of the terms indicating size of all data in the Formatted data area.
• Monitoring registration and command registration number of execution commands.
• All contents of data
2)
If it is hexadecimal, H is attached in front of the number of frames like H01, H12345, H34, H12, and H89AB

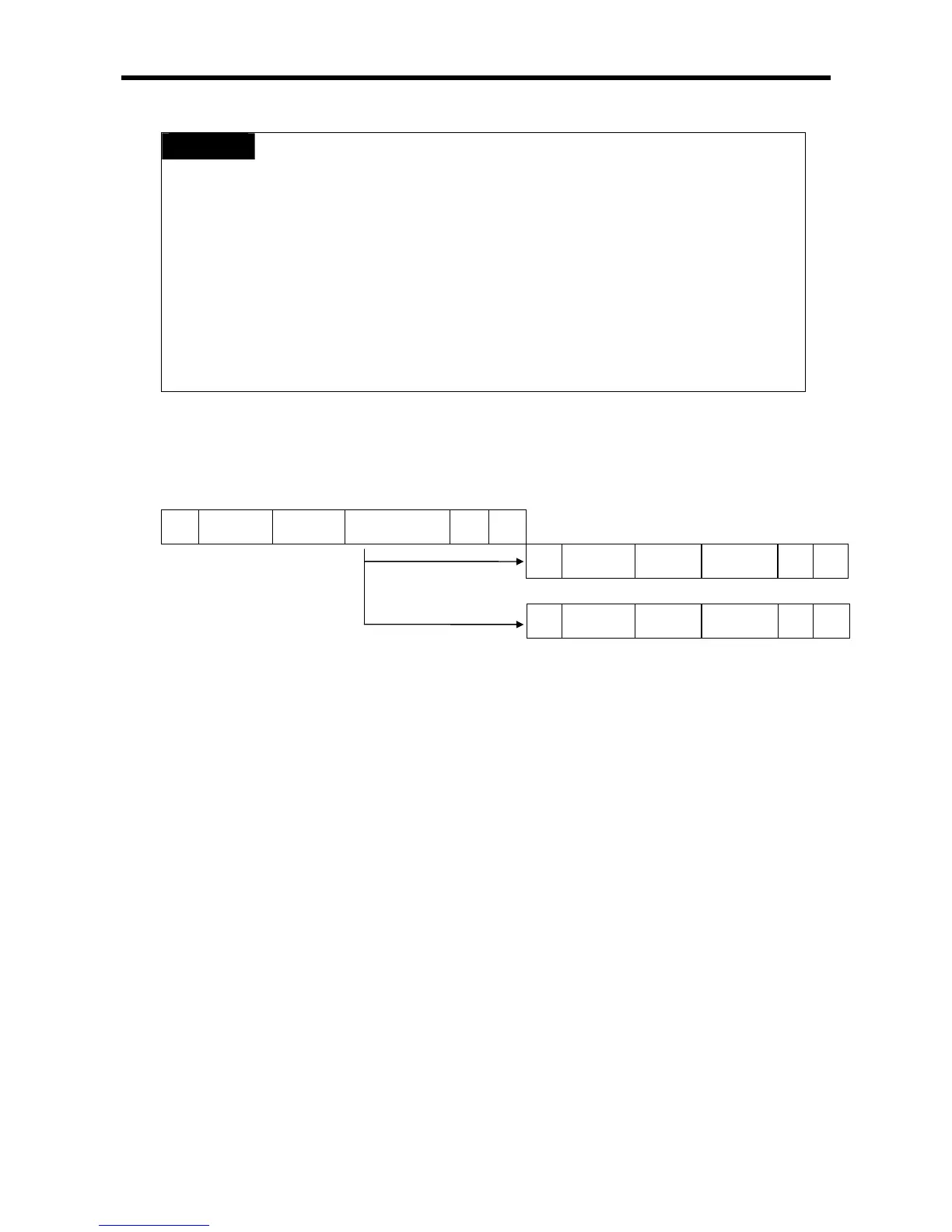

2) Sequence of command frame
(1) Sequence of command request frame
ENQ Station No. Command Fomatted data EOT BCC (PLC ACK response)
ACK Station No. Command Data or null ETX BCC
NAK Station No. Command Error code ETX BCC
(PLC NAK response)
