T-solution MASTER-K120S User Manual

Chapter 7 Usage of Various Functions
7-48
(2) Program which controls speed of inverter by analog output voltage of 5 steps
a) Program explanation
-.When P80 becomes On, 2000 (5V) is output.
-. When P81 becomes On, 2400 (6V) is output.
-.When P82 becomes On, 2800 (7V) is output.
-.When P83 becomes On, 3200 (8V) is output.
-.When P84 becomes On, 3600 (9V) is output.
b) System configuration
Main Unit A/DD/A combination module Expansion module

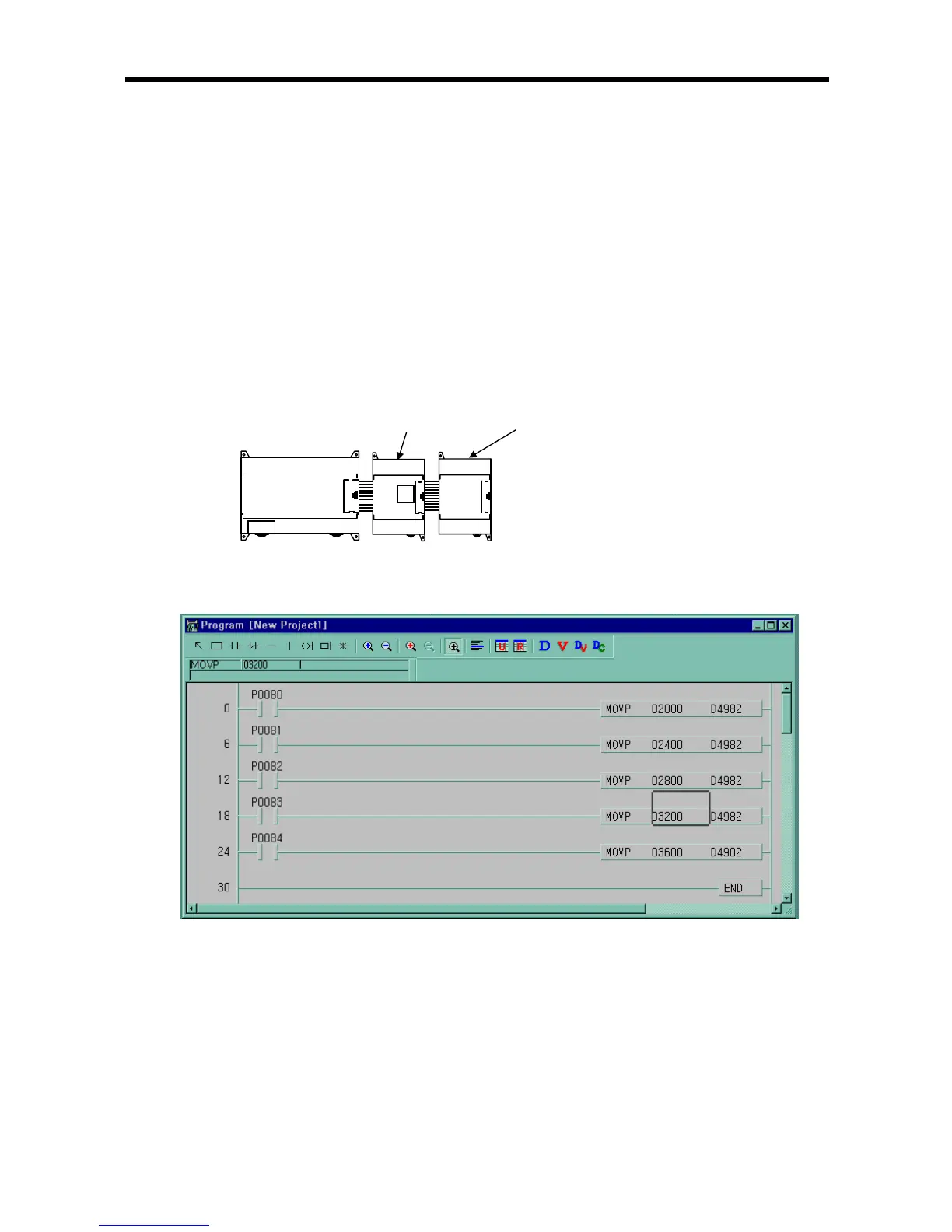

c) Program
