T-solution MASTER-K120S User Manual

Chapter 7 Usage of Various Functions
7-64


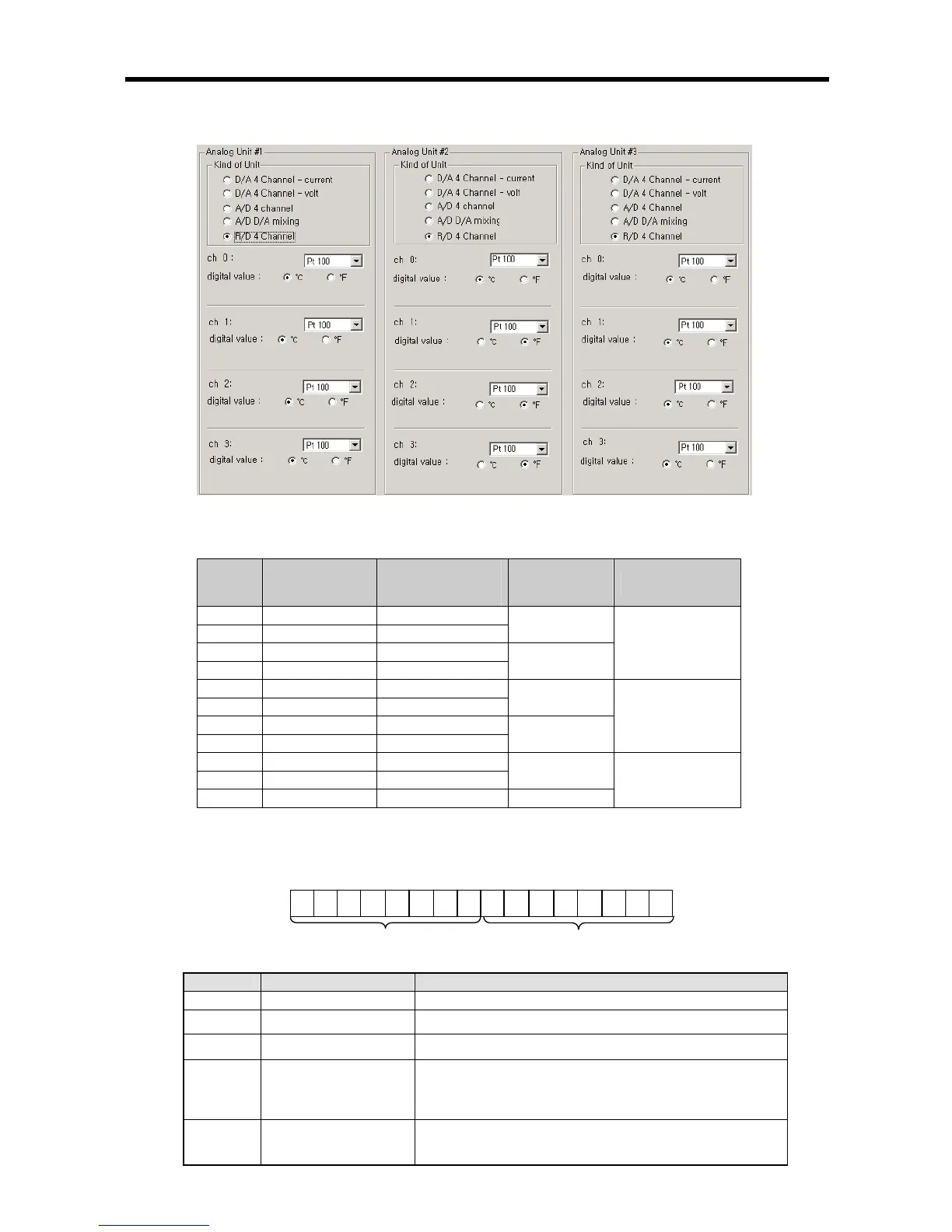

3) Parameter setting
4) Digital conversion value register

Ch.
Detected
Temperature value
Digital conversion
value
Data register Remark
  
  

  
  

Special module
#1
  
  

  
  

Special module
#2
  
  

   
Special module
#3
5) Error code ( D4880D4885 )

Error code Description Corrective action
0 Normal run status
⎯
16(10h) A disconnection detected Fix the A disconnection between RTD input module and RTD.
17(11h) B disconnection detected Fix the A disconnection between RTD input module and RTD
18(12h)
b disconnection detected,
A and B disconnection
detected simultaneously.
Fix the A disconnection between RTD input module and RTD. Or,
Fix the A and B disconnection.
19(13h)
Temperature outside the
range
Correctly specify the type of the RTD, or use the temperature within
the range (-200.0°C ~ 600.0°C)
CH1
CH0
D4880
         
