Chapter 8 Communication Functions

8-66

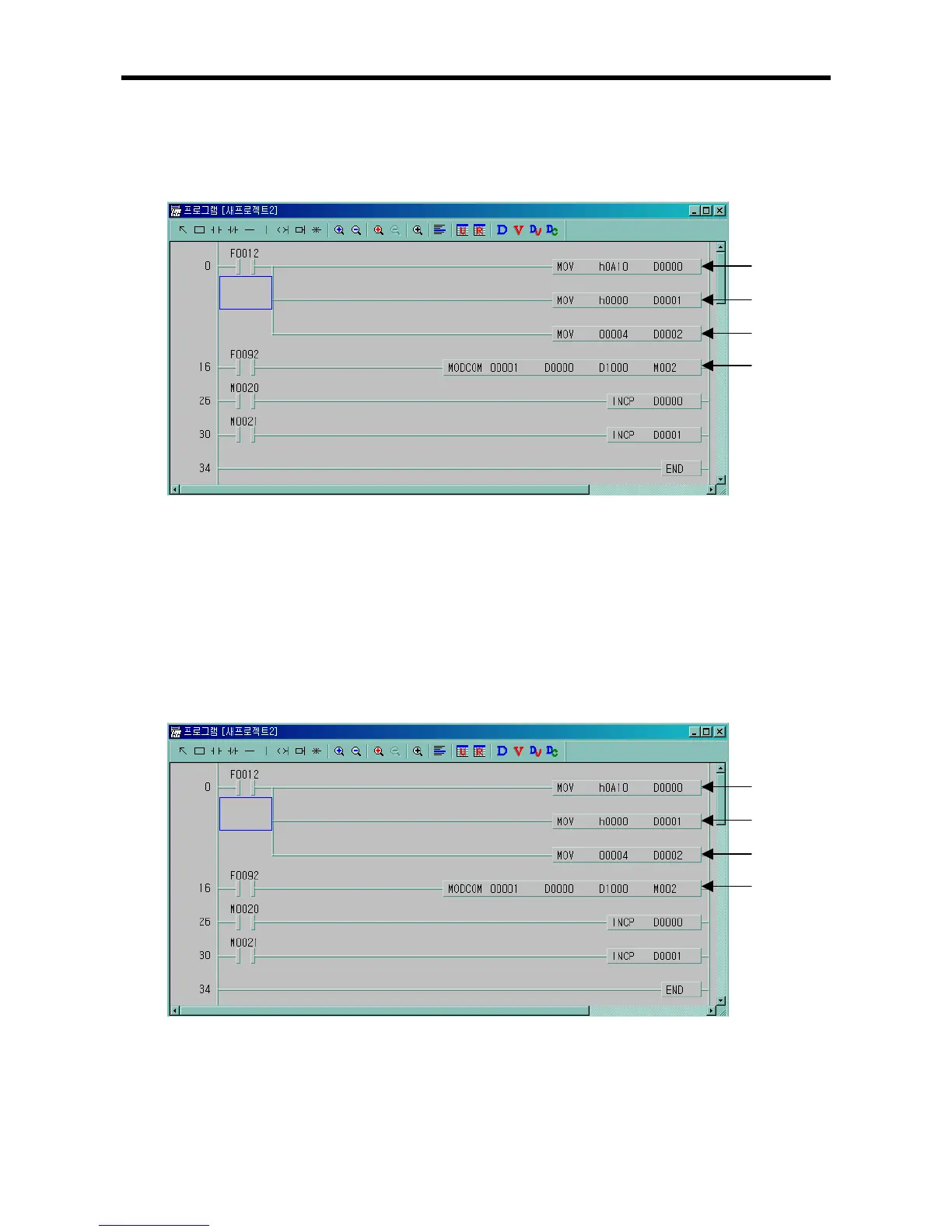

4) Example program 3

The master writes data D1000 ~ D1003 to contact 40000 of the slave station no. 10.

① : It designates slave station and function code ( No. of station : h0A(10) , function code : h10 )

② : Address setting

Address ‘0’ of function code ‘16’ at MODBUS protocol means address ‘40000’ actually.

③ : Writing number setting ( Writing number is 4)

④ : This is MODBUS Communication instruction.

5) Example program 4

The master writes data in D1000 to contact 40000 of the slave station no. 10.

① : It designates slave station and function code ( No. of station : h0A(10) , function code : h06 )

② : Address setting

Address ‘0’ of function code ‘16’ at MODBUS protocol means address ‘40000’ actually.

③ : Writing number setting ( Writing number is 1)

④ : This is MODBUS Communication instruction.

①

②

③

④

①

②

③

④
