Chapter 7 Usage of Various Functions

7-13



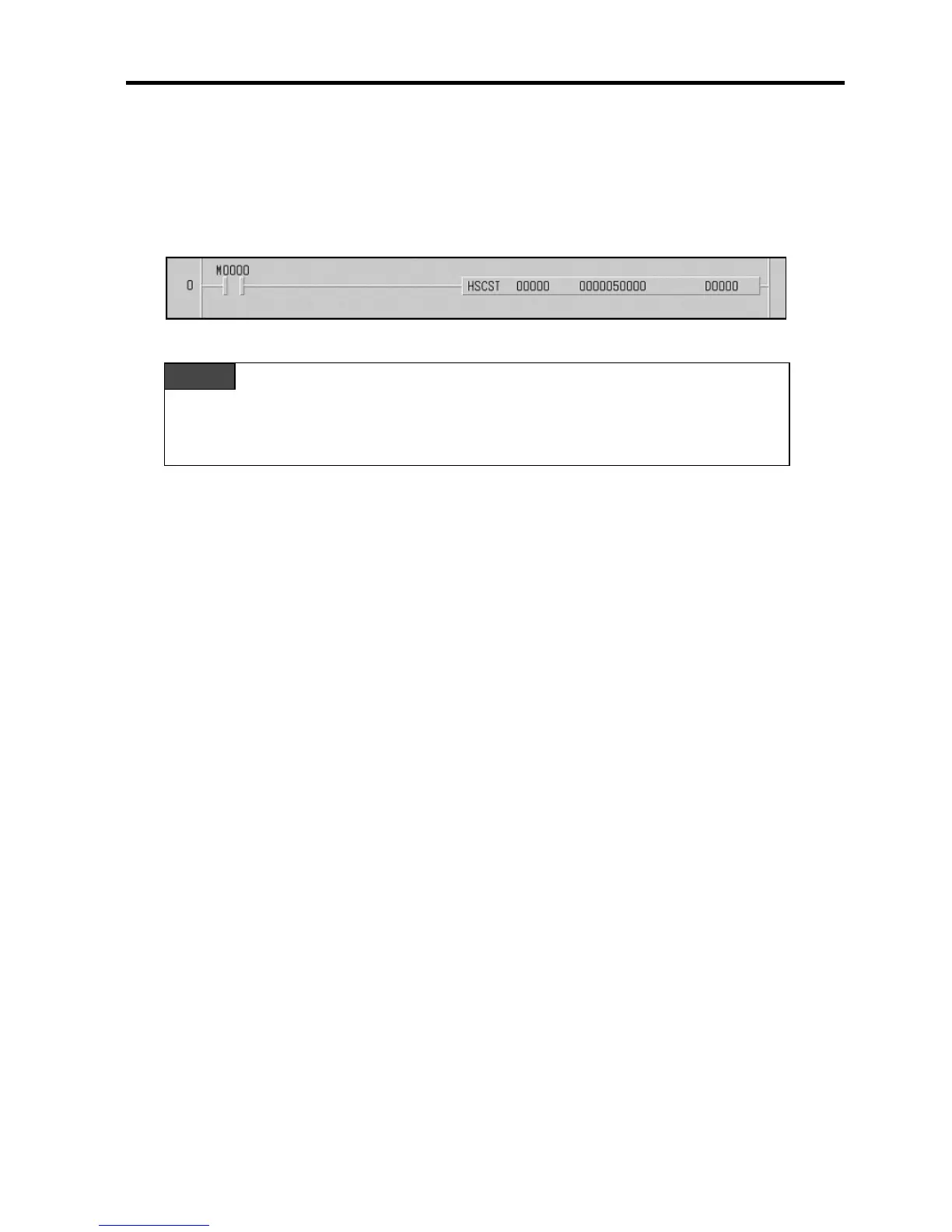

(2) Programming

• When M0 turns on, HSC starts its operation

• If current value is not less than 50,000, F170 turns on.

• Current value is saved in D0(double word).



Remark

The contact point which is designated as HSC input can’t be used for pulse catch or external interrupt.

Duplicated designation may cause faults.
