RSA-G2 Getting Started Guide Page 39
Upper Set of Signal Connections

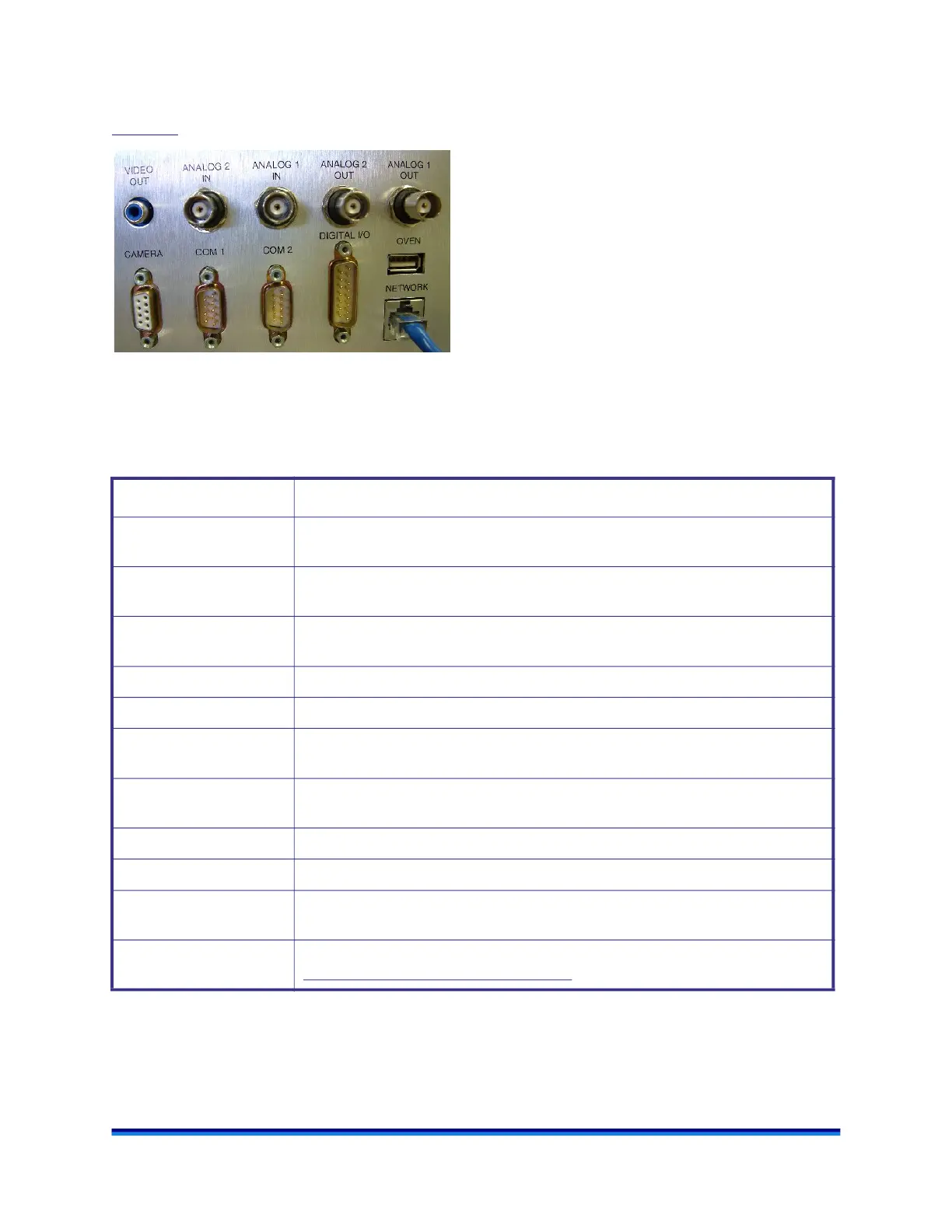

Figure 21
displays the upper set of signal connections on the back of the RSA-G2.
Figure 21 RSA-G2 upper signal panel.
The table below contains information regarding the upper set of signal panel connectors.
Table 5: Upper Signal Panel Connector Descriptions
Connector Purpose
VIDEO OUT Outputs the video signal from the RSA-G2 camera option to the controller computer
for display.
ANALOG 1 IN Accepts a ±10 VDC signal that can be sampled and stored in the experiment data
file. This input is defined through TRIOS software.
ANALOG 2 IN Accepts a ±10 VDC signal that can be sampled and stored in the experiment data
file. This input signal is defined using TRIOS software.
ANALOG 1 OUT A ±10 VDC signal that is defined using TRIOS software.
ANALOG 2 OUT A ±10 VDC signal that is defined using TRIOS software.
CAMERA Connection for the cable between the RSA-G2 test station and the camera located
inside the FCO. This includes power, camera control signals, and camera output.
COM 1 A serial port output from the system CPU. This port is used for communication to
an external circulator.
COM 2 A serial port output from the CPU. (For future use.)
OVEN CAN bus connection to the FCO option.
DIGITAL I/O TTL-compatible input and output signals and relay contact closures. They are
defined using the TRIOS software.
NETWORK Connection for communication between the RSA-G2 and the system network. (See
“
Connecting Cables and Lines” on page 41).
