Ⅱ. only for TPR-1100

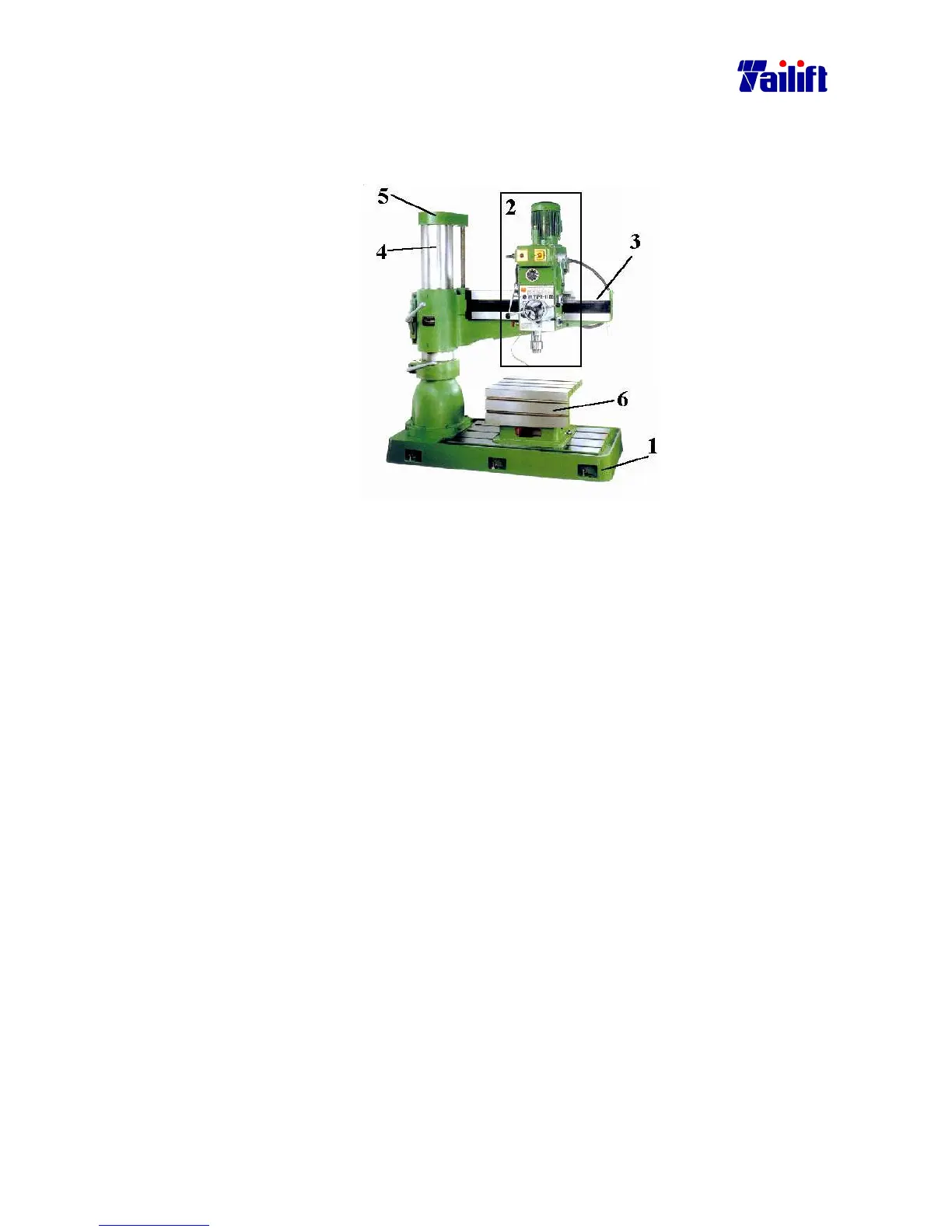

There are six categories of parts on the radial drill: Gearbox, Arm, Column, Top
Cover, Box Table and Base. The following are its description and locations.
1.
Base The main aim of the base is to support the whole weight of the
machine. In addition, the cutting fluid is contained here and the
Box Table is installed on.
2.
2.2.
2.
Gear box
It is the core part for the radial drill for all procession is finished
here, like speed switch, auto feed, spindle,,, etc. They are inside
of the gearbox.
3.
Arm It is to support the gearbox and is connected with the column.
4.
Column It is to support the gearbox and the arm. It connects the base.
5.
Top Cover It is at the top end of the Column.
6.
6.6.
6.
Box table
Working with clamps, it enables to reach the required accuracy.
The ball screw
transmit ion
motor
The motor is to elevate the gearbox.
