Tailift TPR720A - Change Spindle Speed

5-26
Ⅱ
ⅡⅡ
Ⅱ. Change spindle speed
Pic. b.
Label 6 of detail
Low
If the pole switch to high
position, its 8 pole.
OFF
If the pole switch to “OFF”
posit
ion, the motor can’t turn
run.
Pic. a.
High
If the pole switch in high
position, its 4 pole. Normal,
switch to high position.
No.

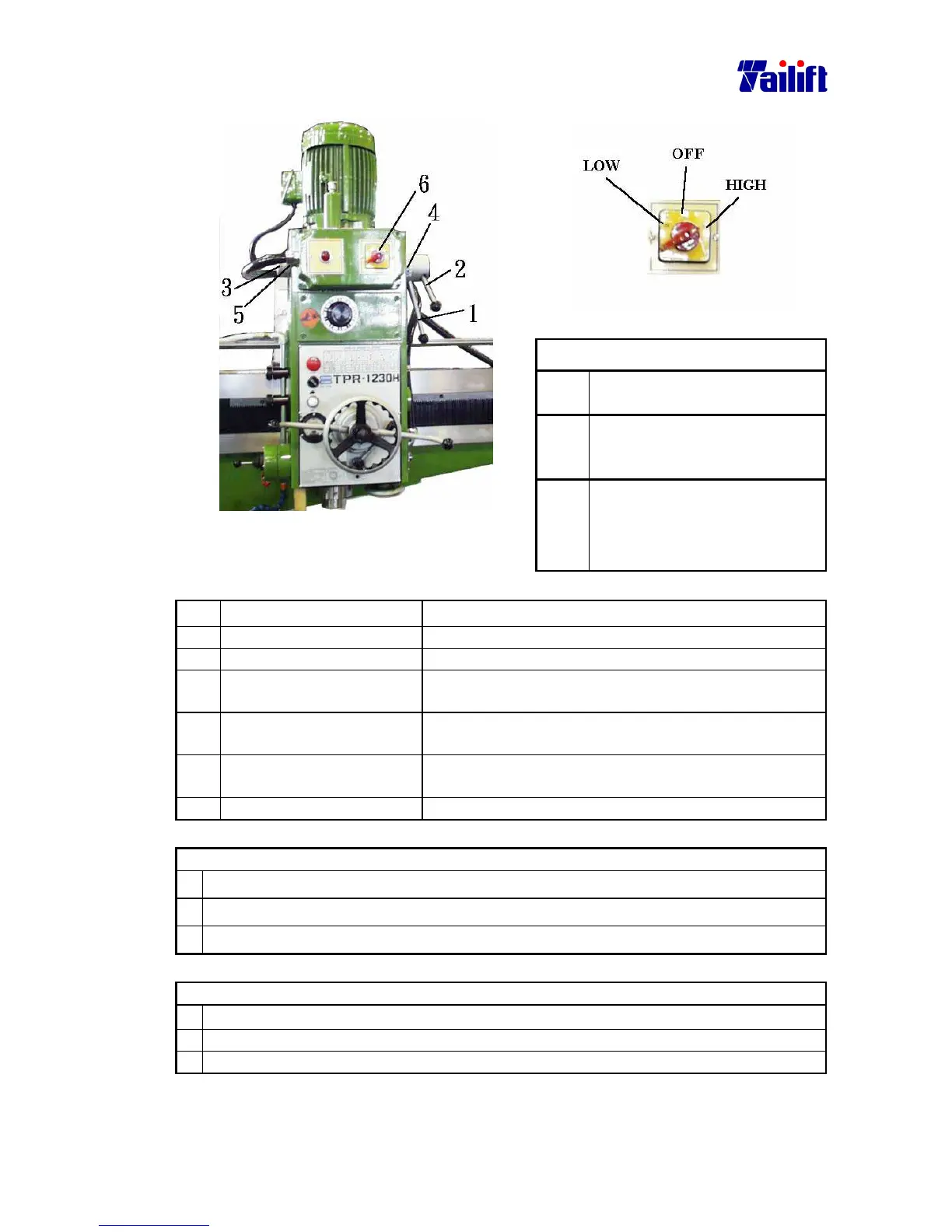

Term Description
1. Three speeds change lever
2. Two speeds change lever High and low speeds change lever.
3. Indicating ring for high
and low speed.
It is to indicate the current speed.
4. Reference point for the
three speeds change lever
It refers to the current position of the three speeds
change lever.
5. Reference point for the
two speeds change lever
6. Pole change switch
Change the spindle speed as the following way:
a.
Have spindle rotate.
b.
Look up in the speed table and choose a suitable speed rate.
c.
Turn on the switch for the feed rate.
Precaution when changing speed:
a.
Spindle rotation must be stopped when at changing speed.
b.
Please press down the emergent stop button for safety reason.
c.
Change speed only after the spindle stops completely.
