Tailift TPR720A - Elevating the Arm

5-20

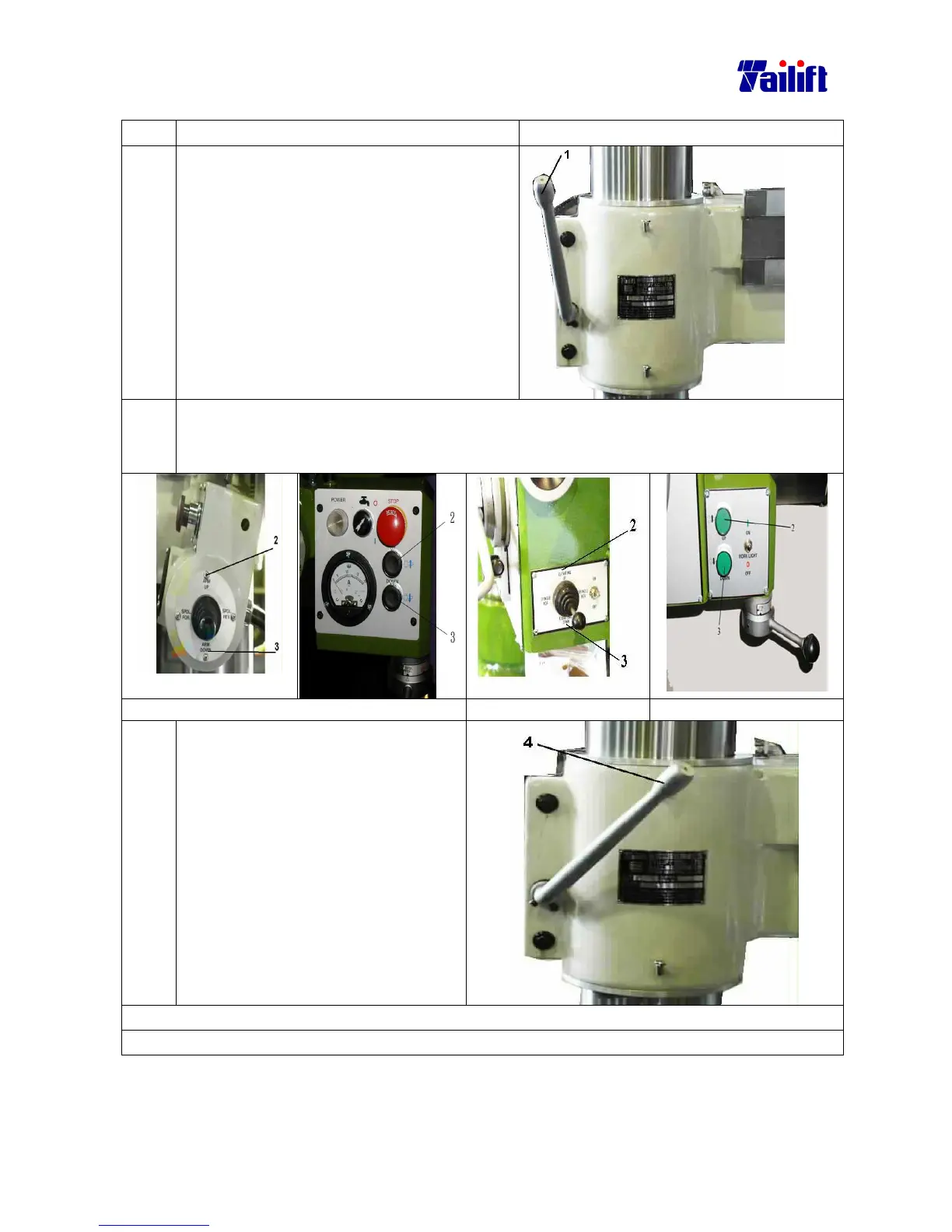

5.8 Elevating the arm.
Steps
Description Diagrams
1. Revolve the arm clamping lever counter
clockwise to loosen it as shown in fig. 1.
2.
Please switch up the “cross switch” or push the “up” button shown as
the Picture on the right hand . Shown No.2 Please switch down the
“cross switch” or Push the “down”button No3. Arm down or down.
(For TPR-720A,TPR-820A,TPR-920A) (For TPR1100)( Type I)
(For TPR1100)( Type I)
3. Revolve the arm clamping lever
clockwise to tighten it as shown
in fig. 4.
Precaution
You can’t either ascend or descend the arm when it is clamped.
