5.1.3 Safty protective device (suit every model)
No.
Term Description
1
Safety Protective
Cover
For to avoid debris fly off. When spindle making the drilling bit,the
cover must be close. Another for safety, the spindle must stop
rotation, when the cover is open.
2
Limit Switch The limit switch is controlled by safety protective cover’s open or
close.
If safety protective cover is open,the spindle stop rotation by limit
switch’ single . Another,if safety protective cover is close,the spindle
can rotation.
Precaution
PrecautionPrecaution
Precaution：
1.

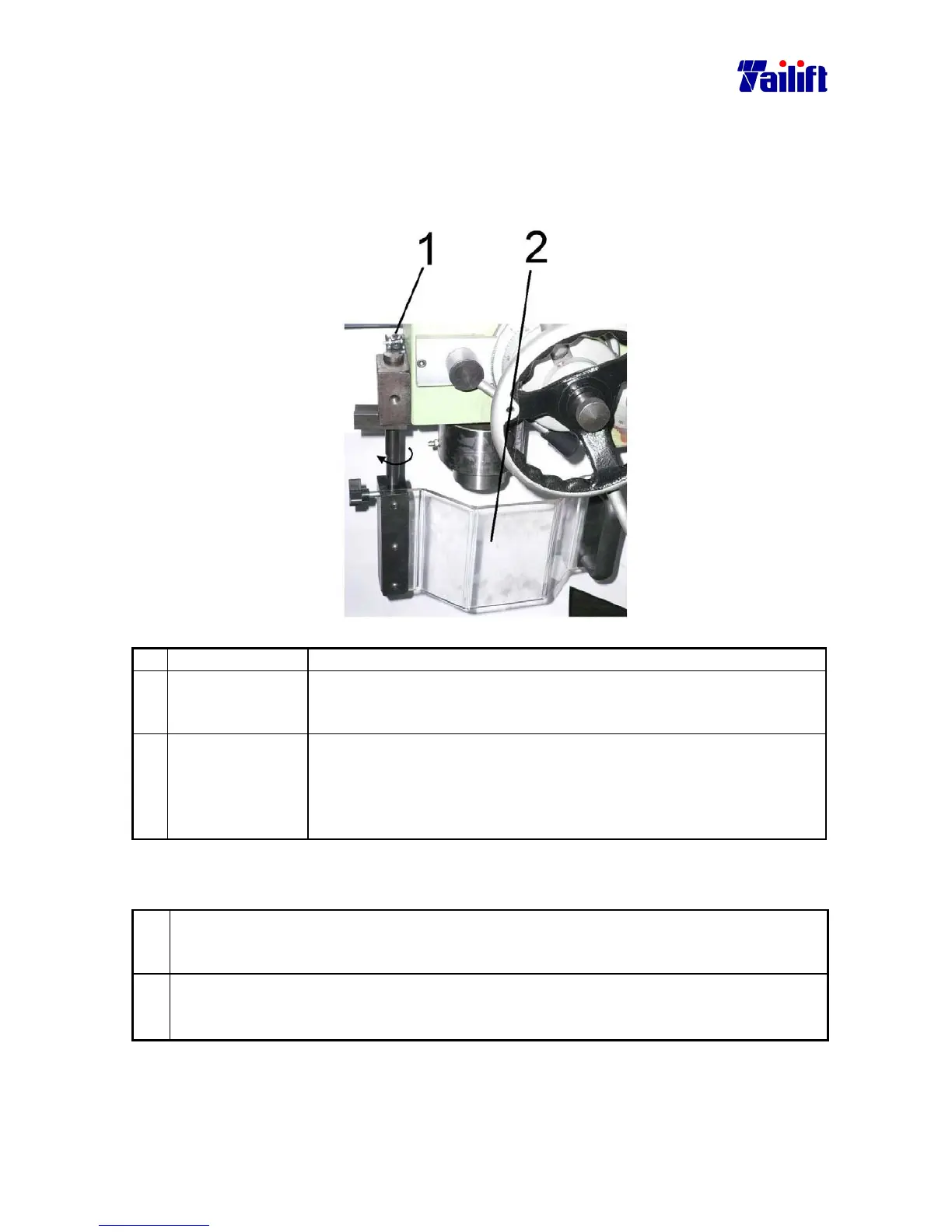

When user close the saftety protective cover(As marked 1) , the limit switch (As
marked 2)can message a signal to allow the spindle rotation.Therefore, user can
operation the machine.
2.
When user open the saftety protective cover(As marked 1) , the limit switch (As
marked 2)can message a signal to stop the spindle rotation immediately.
