Adjust the engagement between the feed trip lever and the clutch
After the machine has been used a period of time, gap between the feed trip lever
and the clutch will appears. It is then the time to adjust the engagement between the feed
trip lever and the clutch.
a.

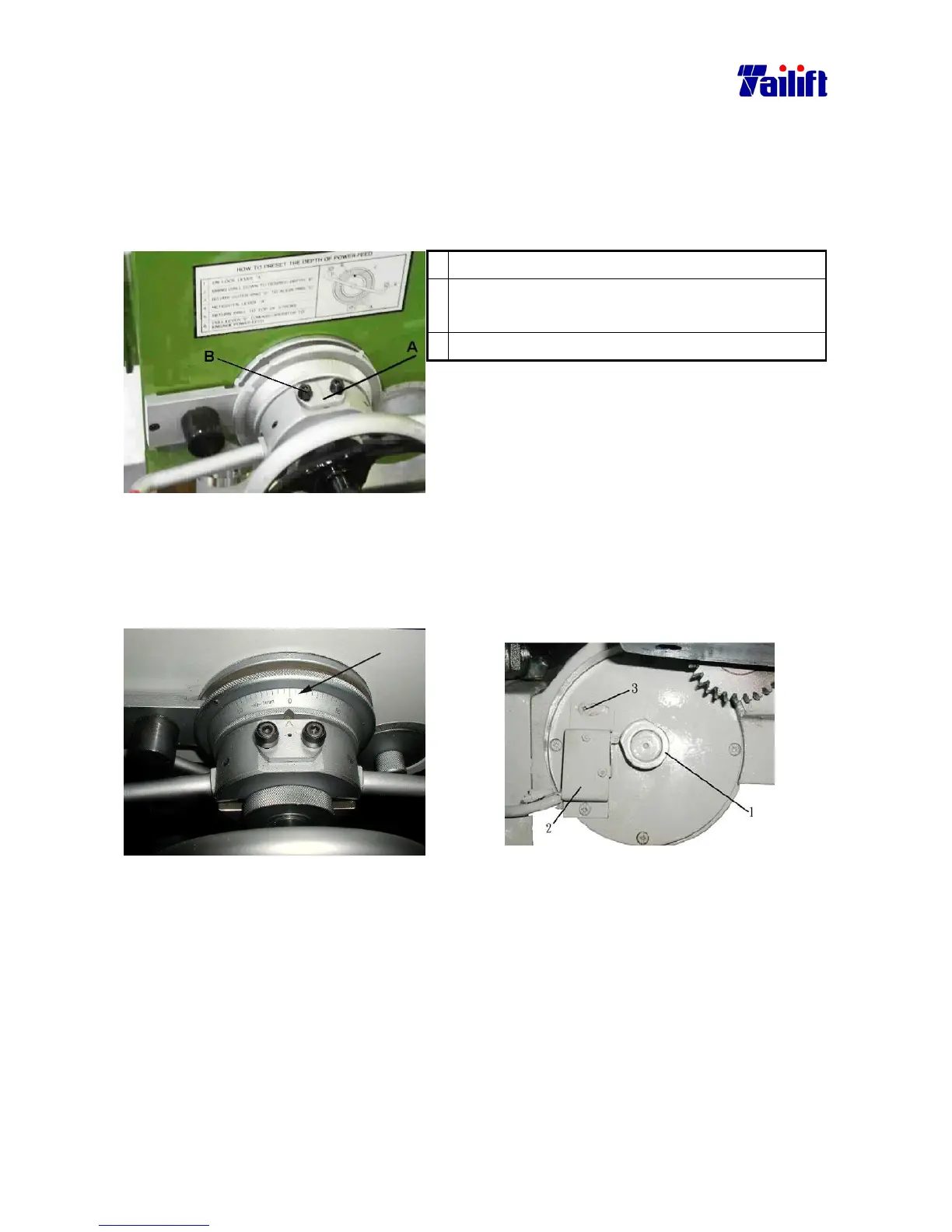

Release the bolts B as shown in the right picture.
b.
Push the adjusting block forwards, using a hex
wrench, as shown in the right picture.
c.
Tighten the bolts B as shown in the right picture.
6.5 Maximum Range for spindle adjustment
Maximum Range for spindle adjustment Maximum Range for spindle adjustment
Maximum Range for spindle adjustment
(For TPR-720A, TPR-820A, TPR-920A)
When you find the spindle adjustment range for maximum and minimum are different or you
change the spring seat, please readjust the clearance for the spindle 3 to 5 mm to prevent
the spare part get damage.
a. In the left photo you will see the spindle gradua
tion.
b. First rotate the spindle to the upper maximum position. Let it has 3 to 5mm clearance.
See the right photo. Rotate the CAM 1 to touch the limit switch 2.
Second rotate the spindle to the lower minimum position. Let it has 3 to 5mm clearance.
Tighten the CAM fix screw and screw 3.
c. Rotate the CAM to touch the limit switch slowly. When you hear the crack noise, you can tighten
the screw.
