Tailift TPR720A - Space Requirement

3-2

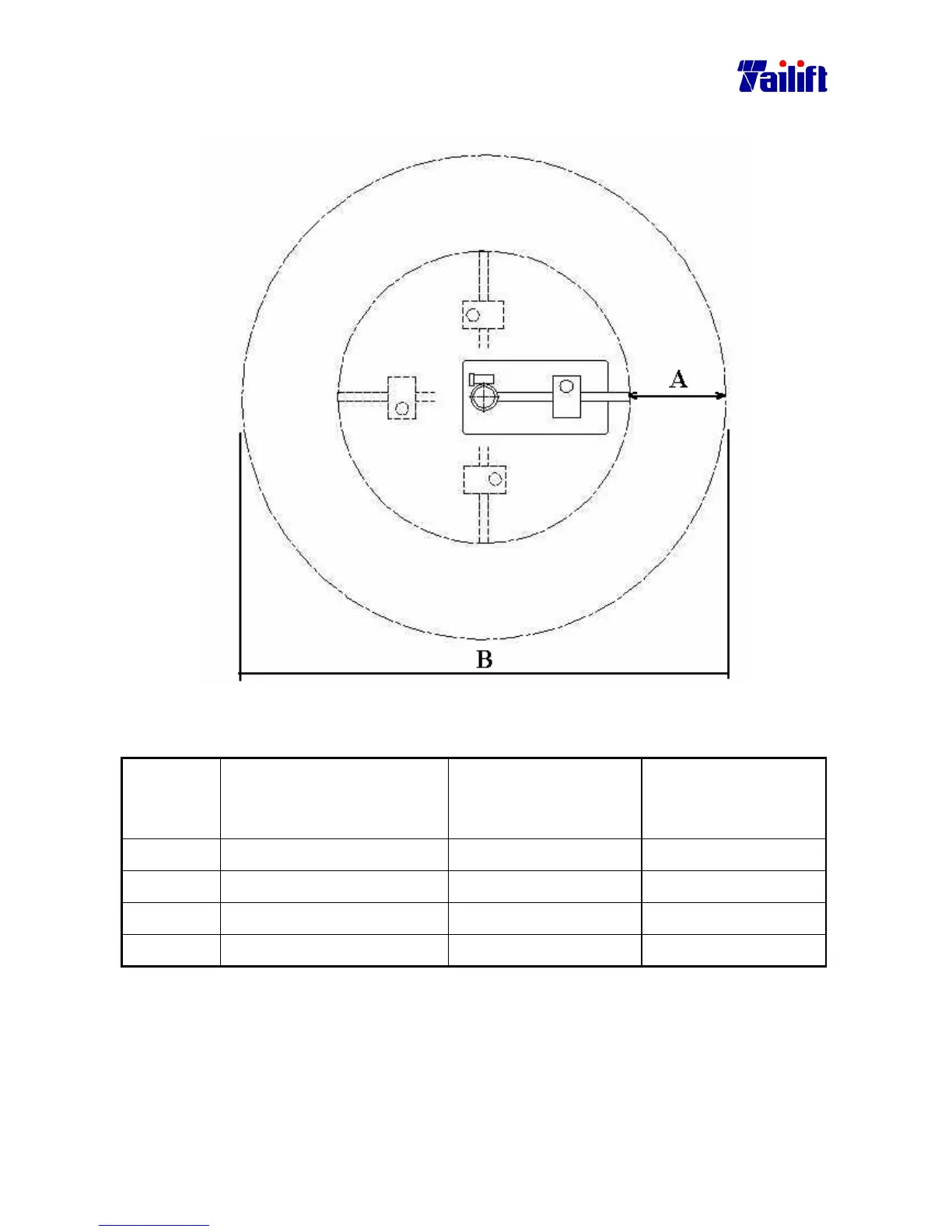

3.1.2 Space requirement
For safety reason, Path must be considered when installing. For space, it requires:
I
ts calculation is the area of the arm rotating 360 degree, the most outer circle and plus 1000
mm. Different models has different dimensions.
MODEL T
he distance from the column
center to the arm limit.
Plus maintenance area
(A)
Total space
requirement
(B)
TPR-720A
1028 mm 1000 mm 4056 mm
TPR-820A
1128 mm 1000 mm 4256 mm
TPR-920A
1228 mm 1000 mm 4456 mm
TPR-1100
1428 mm 1000 mm 4856 mm
