Tailift TPR720A - For TPR-1100)

6-3
6.3.2 (For TPR-1100)
a.

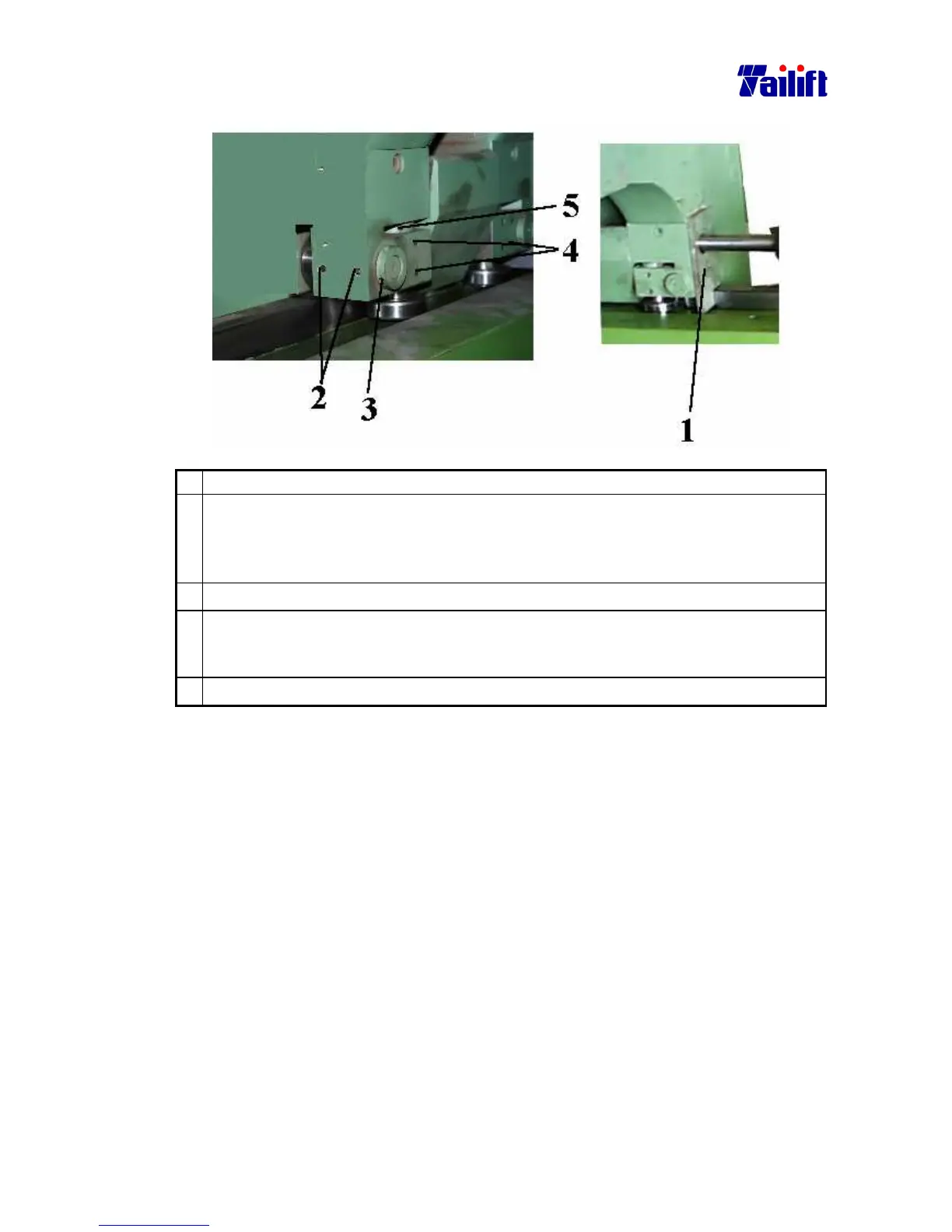

Remove the side plate as the above figure 1.
b.
Release the bolts as the above figure 2. Using socket wrench
, insert it into the holes
as shown in the above figure 3 and rotate them. Apply the tightness as the hand
wheel of the Gearbox can be turned easily but not too easily. Apply the same to the
counter side.
c.
Release the bolts as shown in the right figure 4.
d.
Using socket wrench, insert it into the holes as shown in the above figure 5 and
rotate them. Apply the tightness as the hand wheel of the Gearbox can be turned
easily but not too easily. Apply the same to the counter side.
e.
Screw up the side plate of the above figure 1.
