4.2 Transportation.
4.2.1 The diagram of the machine weight and its gravity center.
The weight differ due to the different models. Their data is as blow:
MODEL TPR-720A TPR-820A TPR-920A TPR-1100
Total Weight 1250 kgw 1340 kgw 1400 kgw 1950 kgw
Required Forklift 2 tons 2 tons 2 tons 2.5 tons
Note:
Please make sure that the forklift tonnage is suitable for the machine.

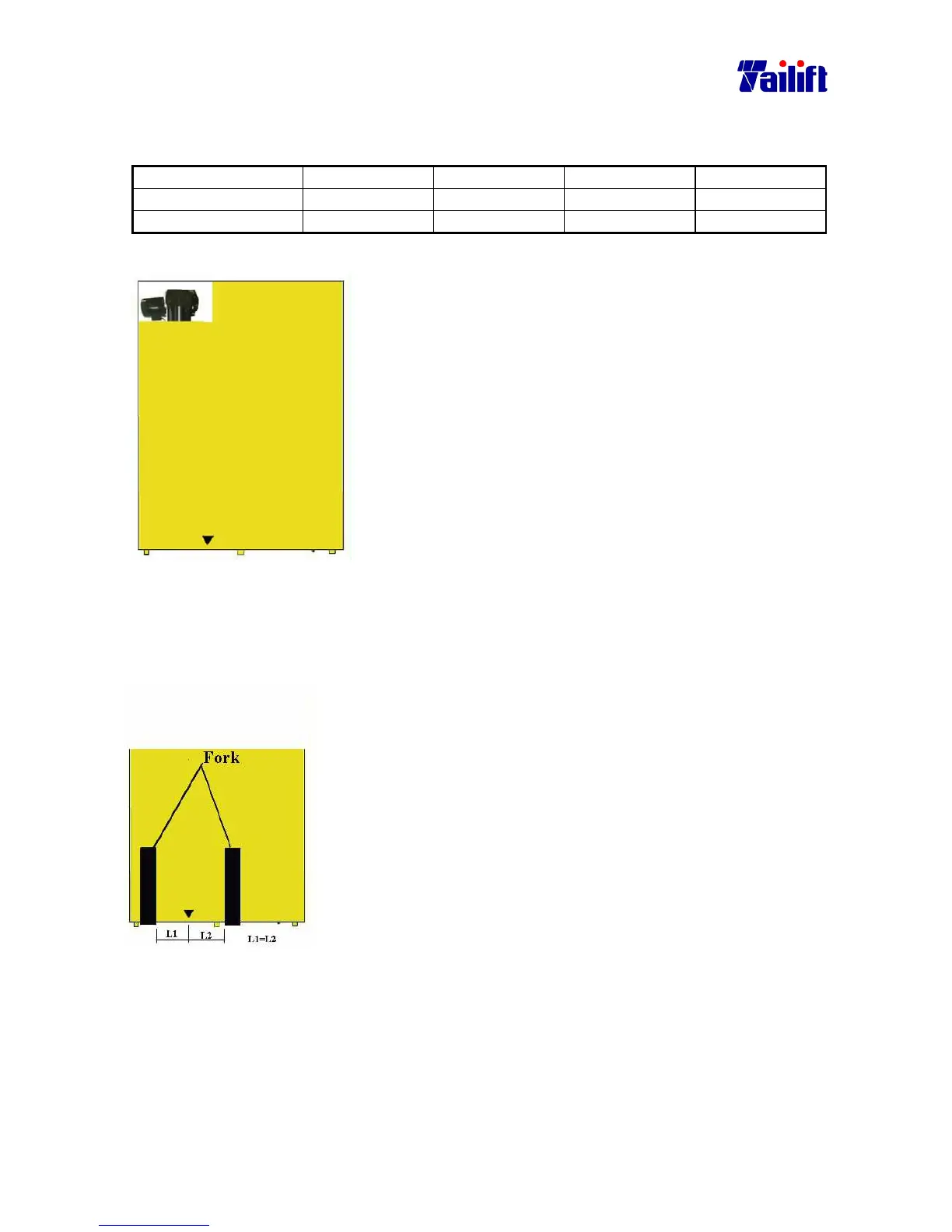

The above arrow pointed
place is the machine’s gravity
center. It is about 200 mm far from the Column, measured
from the middle of the wooden crate.
4.2.2 The movement of the machine.
The follow is using forklift to move the machine.
The following is the procedure, precaution and illustration for moving the machine with
forklift.
a.
Have a suitable forklift move to the wooden crate.
b.
As diagram shown, insert two forks into the underneath of the
wooden crate.
c.
Adjust the distance from the forks to the gravity center till L1 is
equal to L2. (L1 & L2=350mm)
d.
Have forks fully inserted into the underneath of the wooden
crate.
e.
Have the machine fastened to the forks and forklift, using metal
chain or wire.
Precaution：
：：
：
a. Forks must be fully inserted.
b. L1 must be equal to L2 so that the machine can be in balance.
