CHAPTER 4
Transportation and Installation.
4.1 Disassembly and packaging.
4.1.1 General
Electrical equipment should be designed to stand transportation and storage under the
temperature between -25
℃
℃℃
℃ and+55℃
℃℃
℃. If this is impossible, proper measurements must be
taken to endure the high temperature. The criteria for this measurement is that it can
withstand the affection of the high temperature of +70℃
℃℃
℃ within 24 hours. Other
considerations like to prevent damage from vibration or shock must be also given.
4.1.2 Packaging.(For TPR-720A, TPR-820A, TPR-920A, TPR-1100)
When sold and being shipped to customer’s plant, The machine needs to be packaged
and fastened in place.
a.

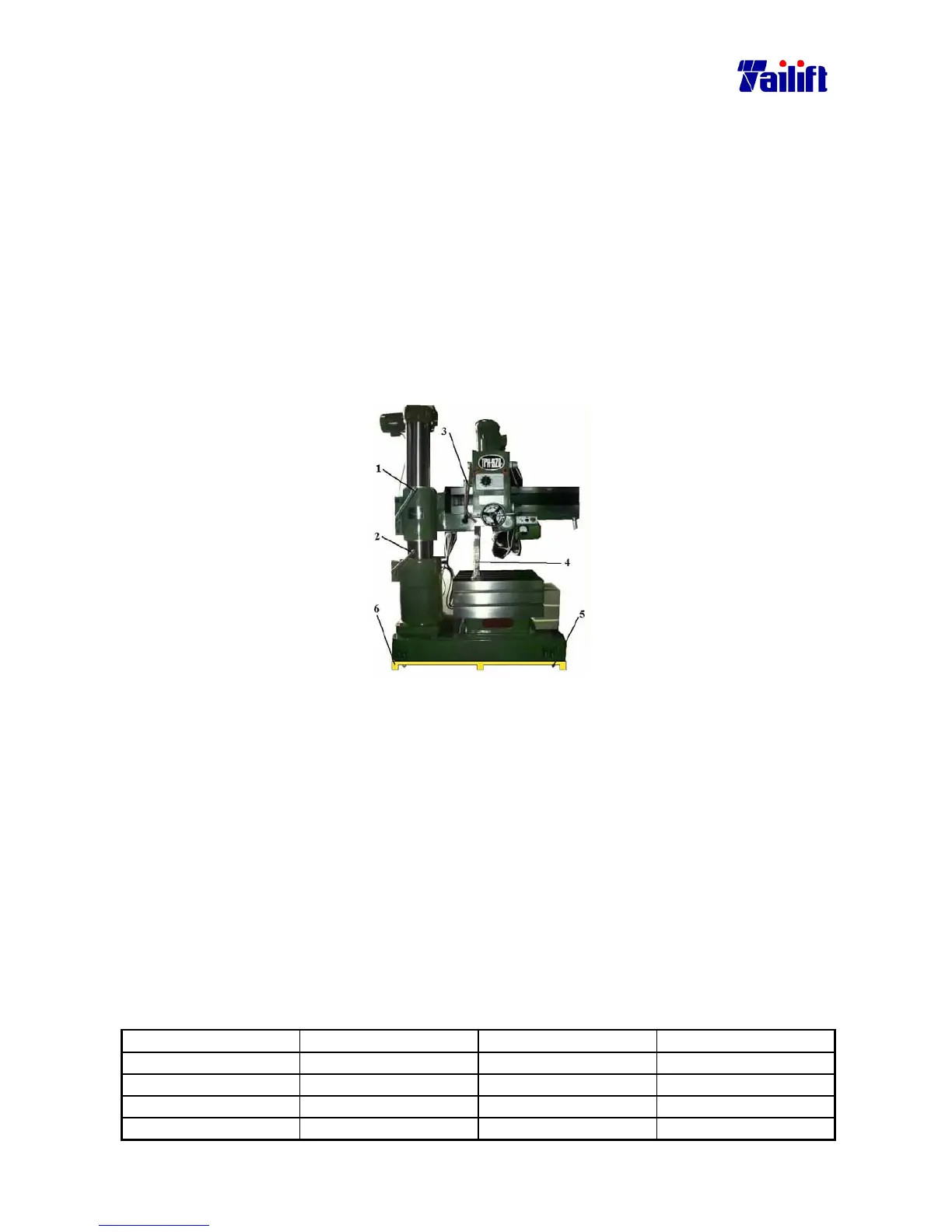

The way to fasten the machine is illustrated as above diagram.
b.
1 is the Arm tightening lever：
：：
：Tight it clockwise.
c.
2 is the Column tightening lever：
：：
：Tight it clockwise.
d.
3 is the gearbox tightening lever：
：：
：Tighten it after being pulled upwards and fastened it to
the speed change lever with wire, to prevent the pull lever from falling during
transportation.
e.
4 is a wooden block：
：：
：
Due to its weight, it might lose its accuracy during transportation. It is
to support the weight of the Arm and prevent from collision each other when test
running. (Please don’t move it when unpacking.)
f.
The block is added to help the Column support the Gearbox.
g.
5 is a fastening screw.：
：：
：
When being packaged, the machine needs to be fastened with screws.
Otherwise, the machine might move during transportation and make the center of the
gravity slant, therefore bring the risk that the machine falls.
h.
6 is the wooden crate base：
：：
：It will ease the movement by a forklift.
Precaution:
All levers must be tightened. Please refer to the chapter 1, regarding the transportation.
MODEL LENGTH WIDTH HIGHT
TPR-720A 1625mm 810mm 2160mm
TPR-820A 1680mm 810mm 2210mm
TPR-920A 1810mm 810mm 2210mm
TPR-1100 1880mm 870mm 2210mm
