4.3.2 Level adjusting.
(1) Tools
a. A level scale, with tolerance within 0.02mm/m
b. Spanners, Level adjusting blocks.
(2) Procedure
a.
Please adjust the level adjusting bolts to contact the level adjusting blocks.
b.
Have the level scale put on the worktable.
c.
Locate the peak point using the level scale and make it as a reference level.
d.
Adjust the tolerance of the level adjusting bolts to be within one grad using the level
adjusting scale.

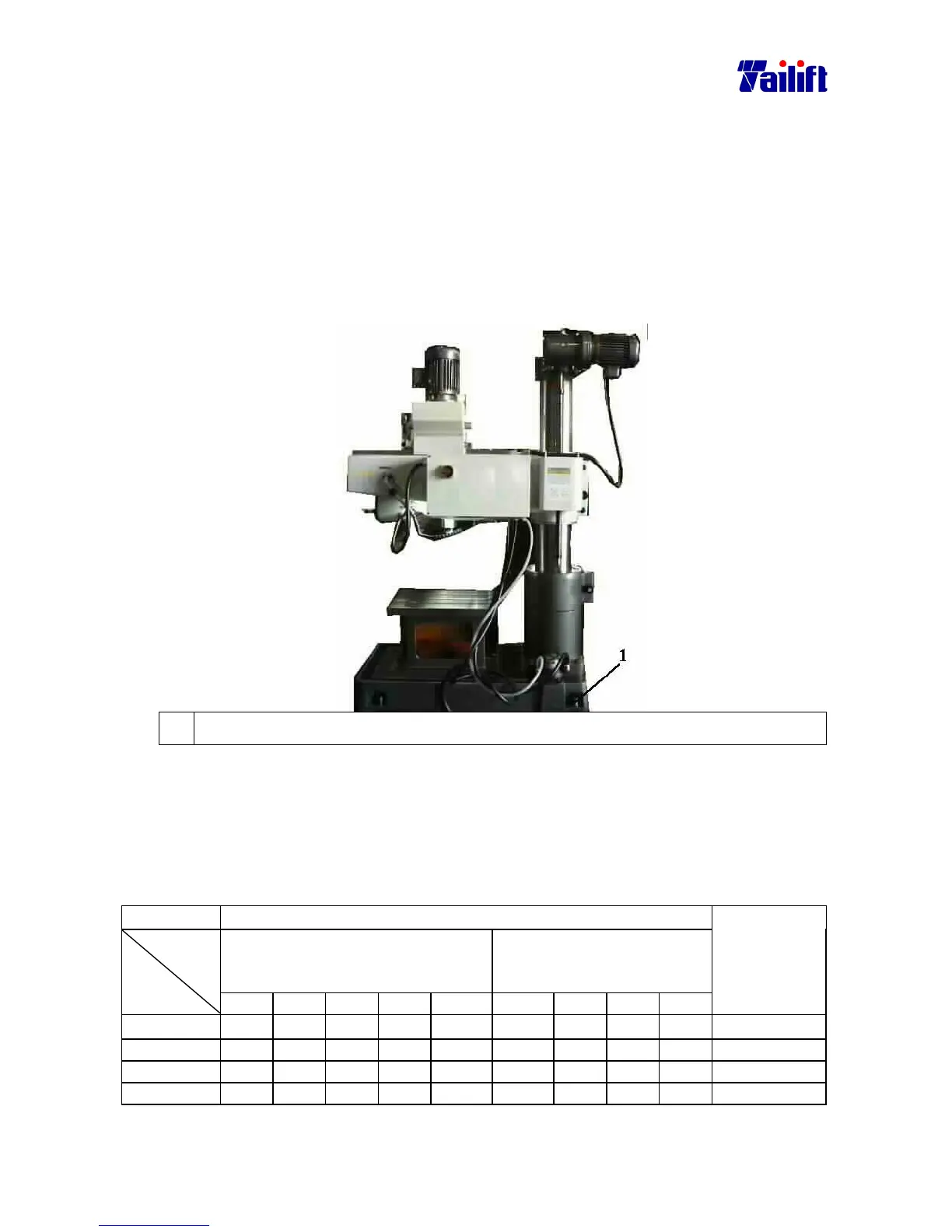

1.
The level adjusting bolts.
4.3.3 The installation of the electricity.
a.
Prepare long enough wire. (about 30 meters). The diameters for all the models are as
follows:
b.
Connect L1、
、、
、L2 and L3 to the main power switch.
c.
Connect the ground wire to PE base.
Note: The following are the main power switches and its other relating data.
Power supply AC±
±±
±10%1Φ
ΦΦ
Φ 50/60HZ±
±±
±1HZ
Cross-sectional area of phase
conductors supplying the
equipment` (mm
2
)
Rated current
(A)
Item
Type
220V
380V
415V
440V
PE 220V
380V
415V
440V
Power
equipment
capacity
(KVA)
TPR-720A
2 2 2 2 2 6.578
3.62
3.62
3.62
5.935
TPR-820A
2 2 2 2 2 6.578
3.62
3.62
3.62
5.935
TPR-920A
2 2 2 2 2 6.578
3.62
3.62
3.62
5.935
TPR-1100
3.5 3.5 3.5 3.5 3.5 16.2 9.87
9.14
8.53
7.853
