CHAPTER 3
Preparation to Install
3.1 Space and room requirement
3.1.1 Floor requirement
Using this machine requires solid and well-structured floor and its good level.
Note:
1. For adjusting level, please refer to the chapter 6.
2. Adjusting level i
s needed before using this machine. The level adjusting tolerance
must be within 1 mm/m.

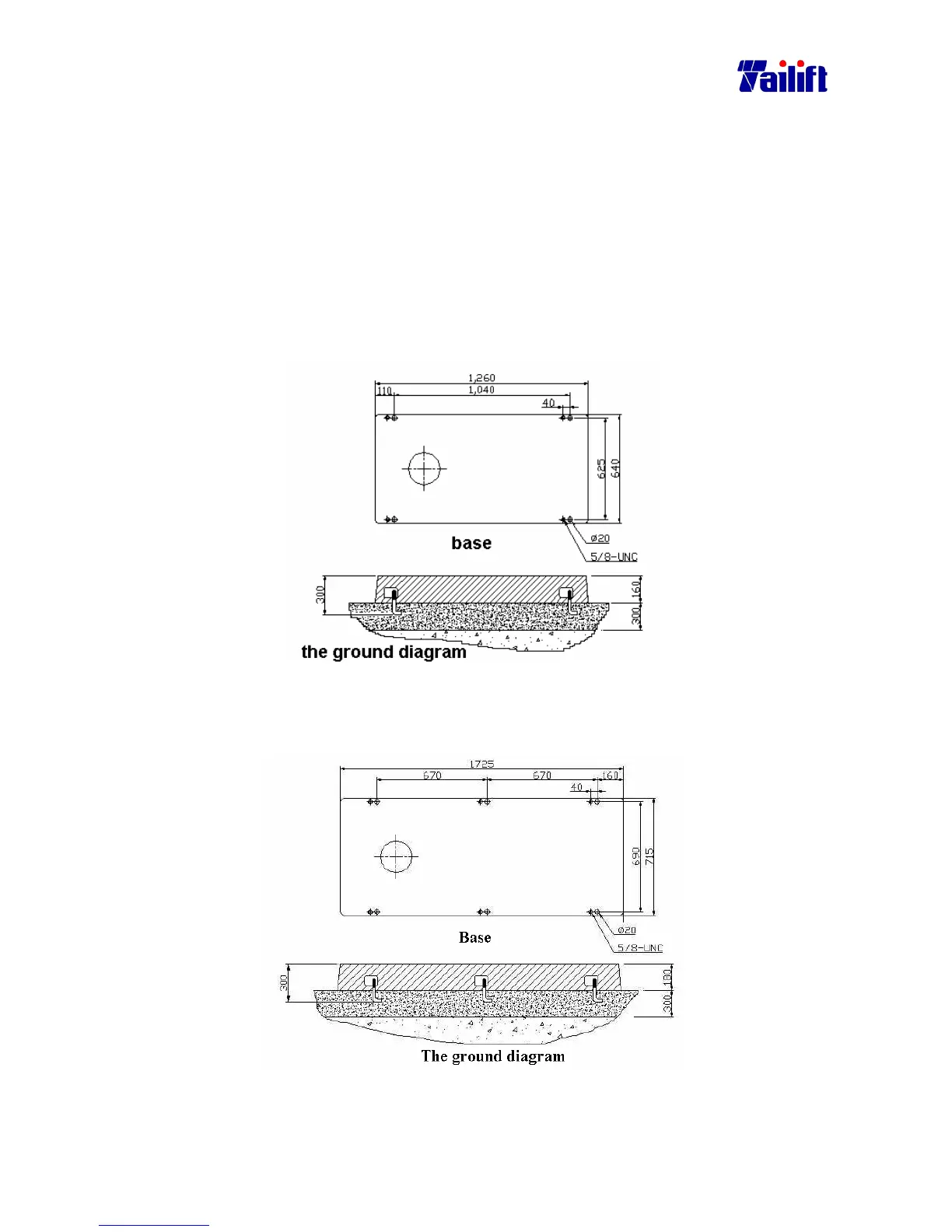

a. For TPR-720A ,TPR-820A ,TPR-920A floor diagrams. (Unit : mm)
The above diagrams are for the bases and ground bolts, as well as its relative positions of
TPR-720A, TPR-820A and TPR-920A.
b. For TPR-1100 floor diagrams (Unit : mm)
The above diagrams are for the bases and ground bolts, as well as its relative positions of
TPR-1100
