9-3

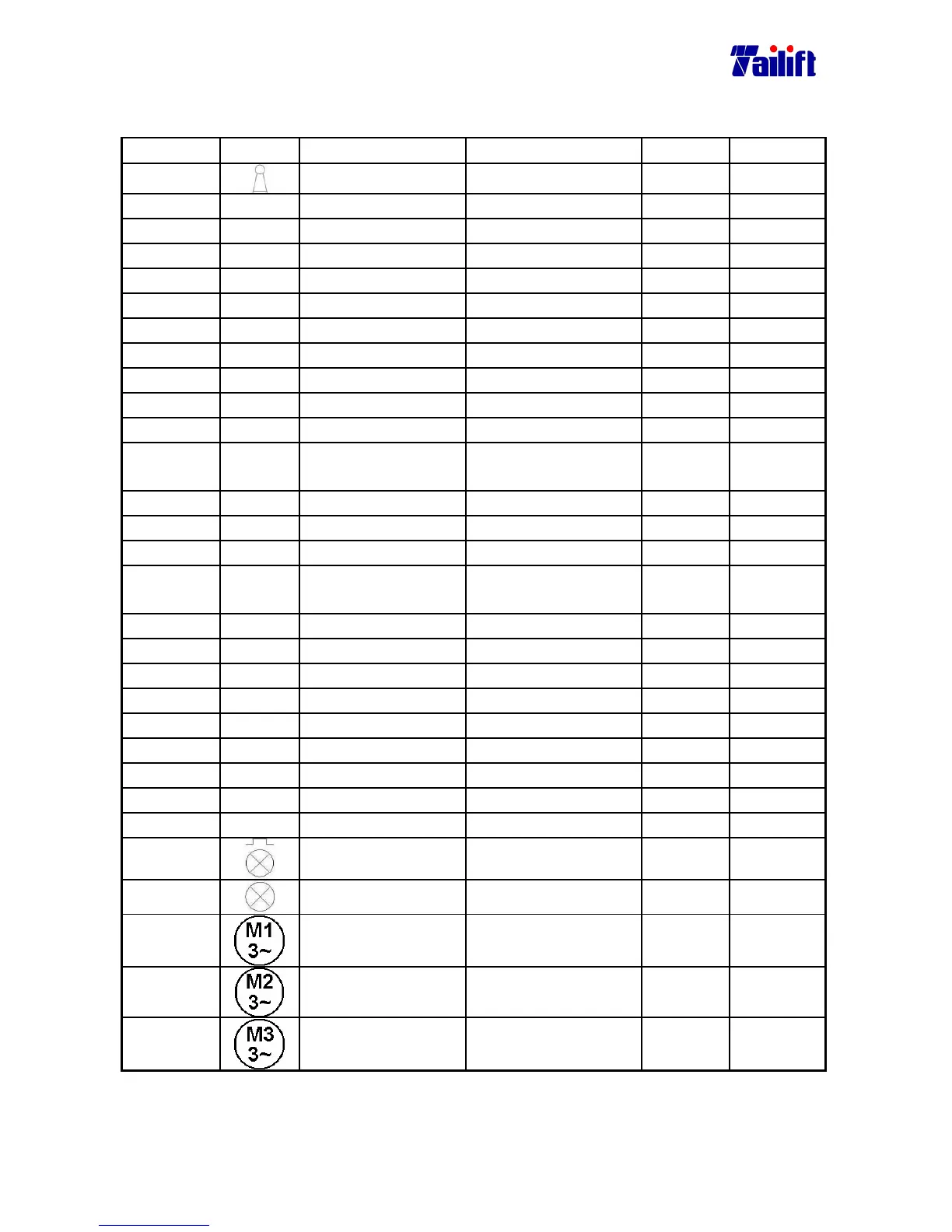

9.3 Eletrical main parts list
(For TPR-720A, TPR-820A, TPR-920A CE Standard )
Part NO.
Symbol
Name Specification Q’ty Remark
E1602001 Key Switch XF 163B 1
E0703001 M1 Magnetic Contact CN11 3a1b 24V 1
E0703001 M2 Magnetic Contact CN11 3a1b 24V 1
E0703001 M3 Magnetic Contact CN11 3a1b 24V 1
E0703001 M4 Magnetic Contact CN11 3a1b 24V 1
E0703001 M5 Magnetic Contact CN11 3a1b 24V 1
E0703001 M0 Magnetic Contact CN11 3a1b 24V 1
E3101023 FU1 Fuse 10*38*16A 1
E3101023 FU2 Fuse 10*38*16A 1
E3101023 FU3 Fuse 10*38*16A 1
E3101025 FU4 Fuse 10*38*6A 1
E1801020 TR Transformer 150VA
1:0,220,380 2:0,24,110
1
E1302004 SS1 Selector Switch YK∅
∅∅
∅22 1A1B 1
E1604001 SS2 Selector Switch SN1021 1
E0901021 SS3 Limit Switch V-15-1E5 4
E1605001 SS3 Cross Switch UP:1A,Down:1A,LEF
T:1A1B,RIGHT:1A1B
1
Option
B100006 SS4 Push button ZB4-BA2+ZB4-BZ101
1
B100006 SS5 Push button ZB4-BA2+ZB4-BZ101
1
E1303002 PB1 Emg. Push Button YK∅
∅∅
∅30 1A1B 1
E0207016 OL1 Overload Relay RHN 10/3.5~5 1
E0207014 OL2 Overload Relay RHN 10/1.4~2.1 1
E0901021 LS1 Limit Switch V-15-1E5 1
E0901014 LS2 Limit Switch MJ2-1308 1
E0901014 LS3 Limit Switch MJ2-1308 1
E0901014 LS4 Limit Switch MJ2-1308 1
E2305002 Power (Alarm Lamp)
YK∅
∅∅
∅22 24V(W) 1
E1701002 Work Lamp FS 51441 110V 1
Main Motor 1.5KW
200/400V/4P/3PH
1
Elevating Motor 0.75KW
200/400V/4P/3PH
1
Coolant Pump Motor
0.1KW
200/400V/2P/3PH
1
