TM9100 Service Manual Disassembly and Reassembly 127
© Tait Electronics Limited August 2005

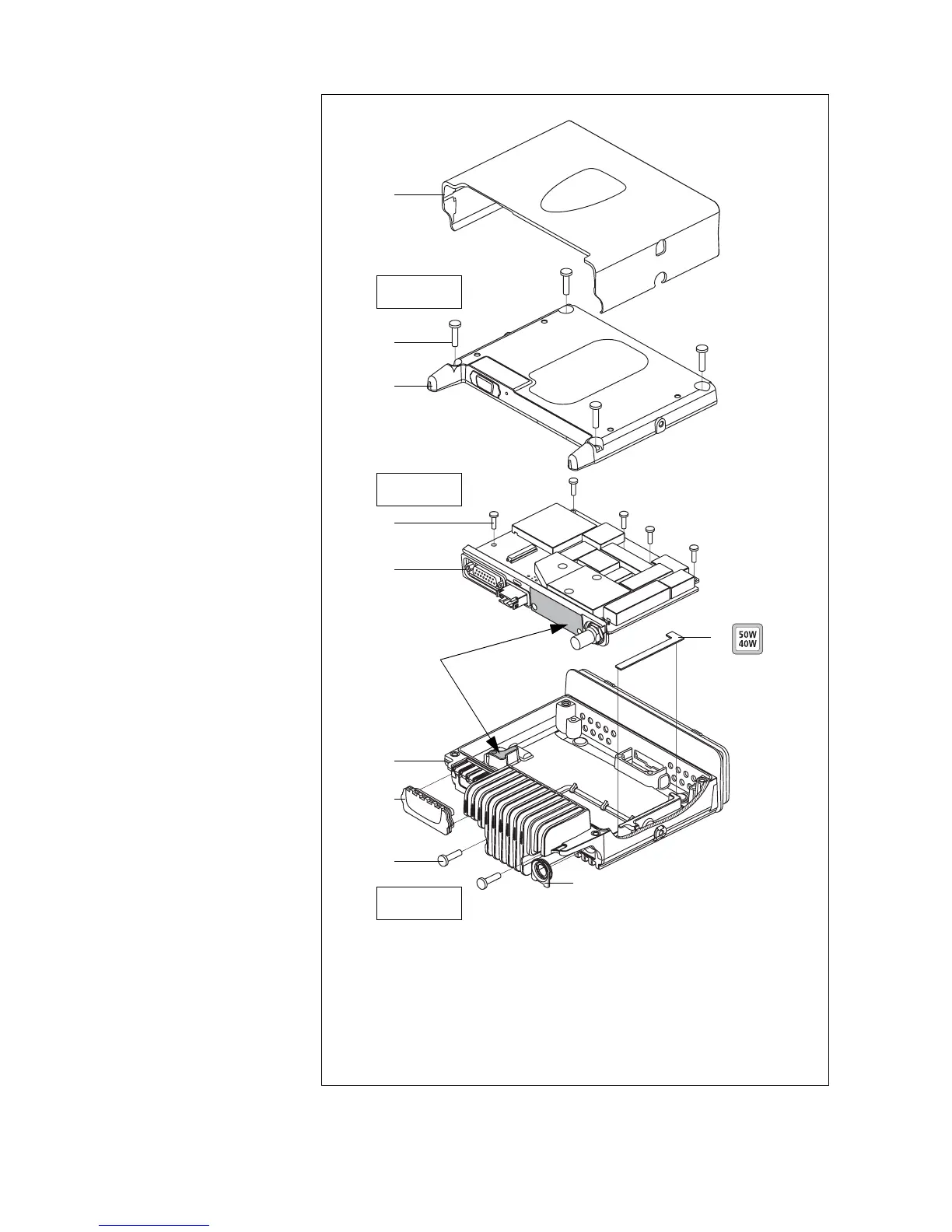

Figure 5.3 Components of the radio body
B
cover
G
chassis
C
screw M4x16 (x4)
H
auxiliary connector bung
D
lid assembly
I
screws M4x16 (x2)
E
screw M3x10 (x5)
J
RF connector seal
F
main-board assembly
1)
gap pad (50W/40W radio only)
Torx T20
22lb·in (2.5N·m)
Torx T10
15lb·in (1.7N·m)
Torx T20
22lb·in (2.5N·m)
B
C
x4
D
E
x5
F
G
I
x2
H
J
3630z_01
1)
thermal
paste
