TM9100 Service Manual Disassembly and Reassembly 129
© Tait Electronics Limited August 2005

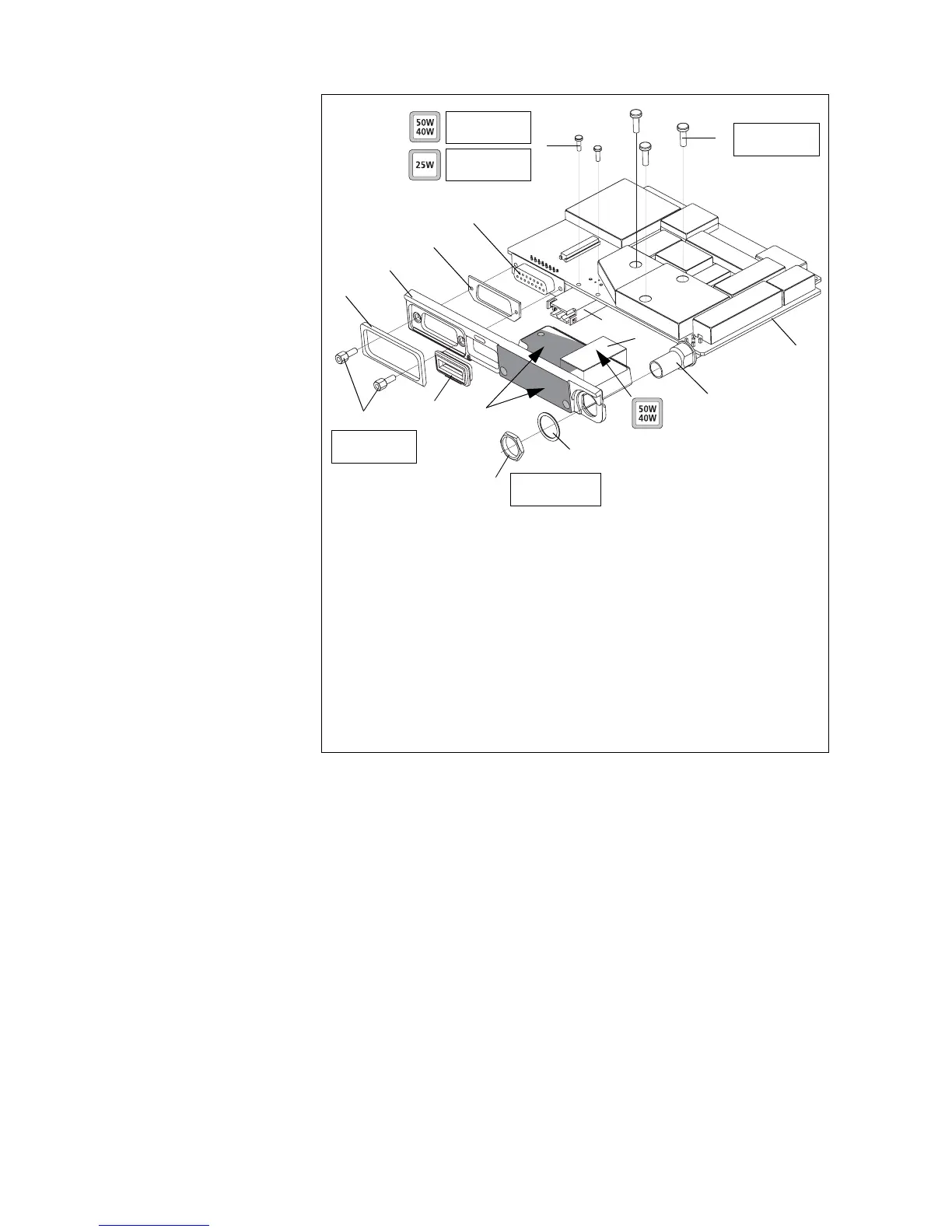

Figure 5.4 Components of the main-board assembly
B
M3x10 screw (x3)
H
D-range screwlock fastener (2x)
C
50W/40W radios:
M2.2x10 PT screw (x2)
25W radios:
K30x8 PT screw (x2)
I
power connector seal
J
power connector
1)
gap pad (50W/40W radio only)
D
auxiliary connector
1!
RF connector nut
E
inner foam D-range seal
1@
RF connector lock washer
F
heat-transfer block
1#
RF connector
G
outer foam seal
1$
main board
H
1$
E
G
F
I
1#
1@
D
J
thermal
paste
3631z_01
1)
9/16 inch (14mm)
15lb·in (1.7N·m)
3/16 inch (5mm)
8lb·in (0.9N·m)
Torx T6
1lb·in (0.11N·m)
Torx T10
15lb·in (1.7N·m)
C
x2
Torx T10
3lb·in (0.34N·m)
1!
B
x3
