TM9100 Service Manual Frequency Synthesizer Fault Finding 209
© Tait Electronics Limited August 2005

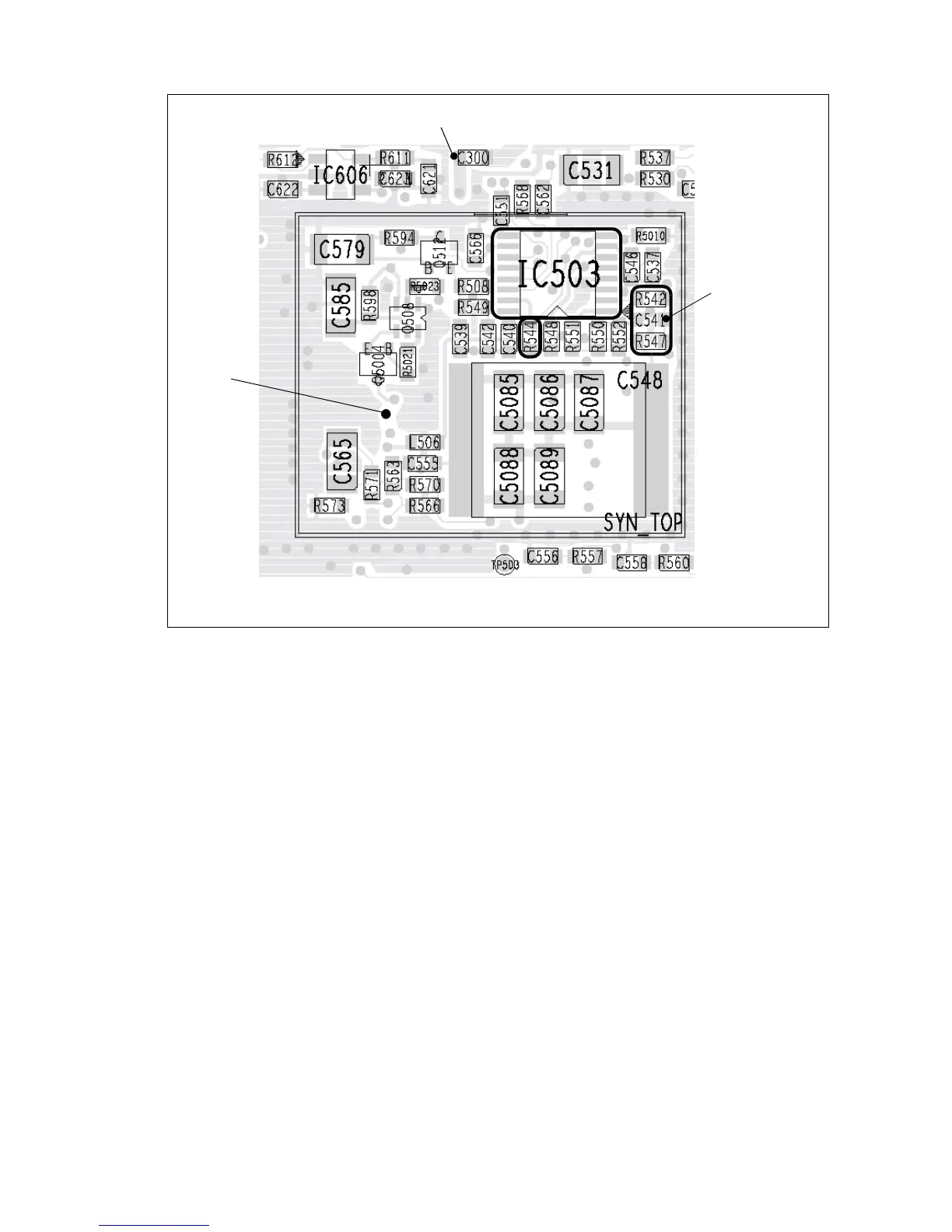

Figure 9.12 Synthesizer circuitry under the
SYN TOP can (VHF radio, top side)
Tx port
Junction of
C541 and R547
Rx port
