TM9100 Service Manual Transmitter Fault Finding (50W/40W Radios) 305
© Tait Electronics Limited August 2005

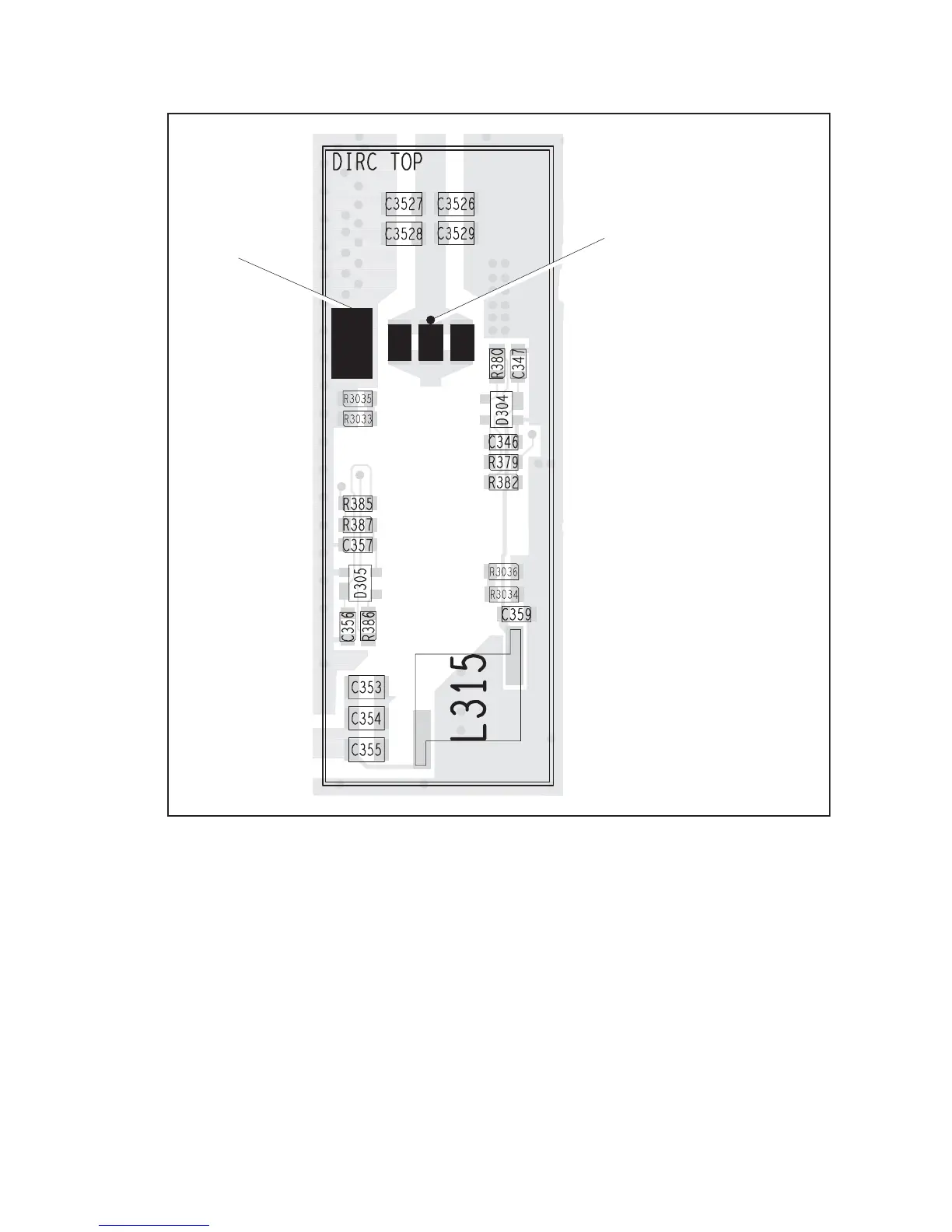

Figure 11.25 Circuitry under the
DIRC TOP can, and the points for attaching the test lead and test
capacitor (B1 band)
B1 BAND
C348
C349
C350
TEST PAD
MOUNTING POINT FOR TEST CAPACITOR
