362 Transmitter Fault Finding (25W Radios) TM9100 Service Manual
© Tait Electronics Limited August 2005

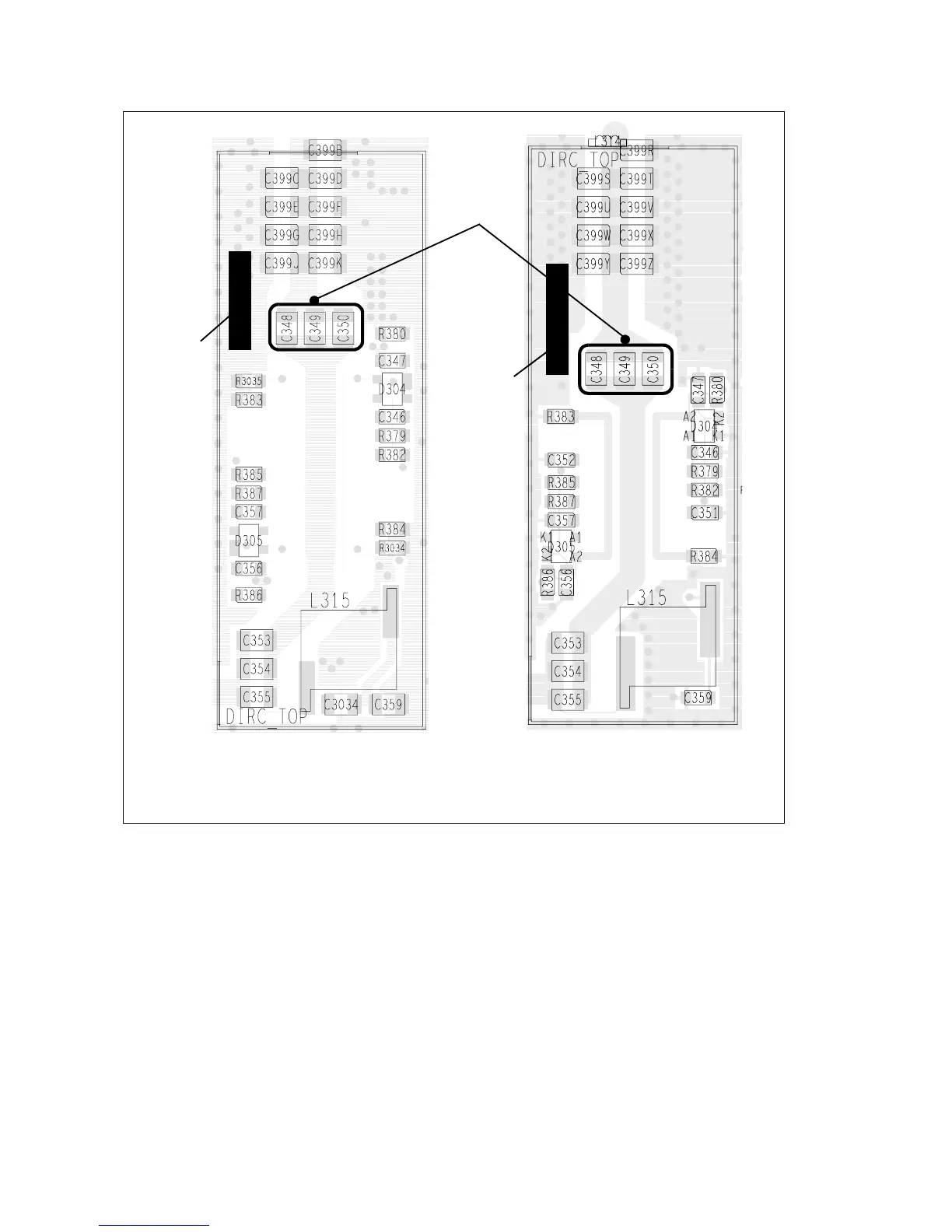

Figure 12.17 Circuitry under the
DIRC TOP can, and the points for attaching the test lead and test
capacitor
B1 band H5/H6 bands
Mounting point
for test capacitor
Test pad
Test pad
