HYDRAULIC PUMP
DISASSEMBLY AND ASSEMBLY

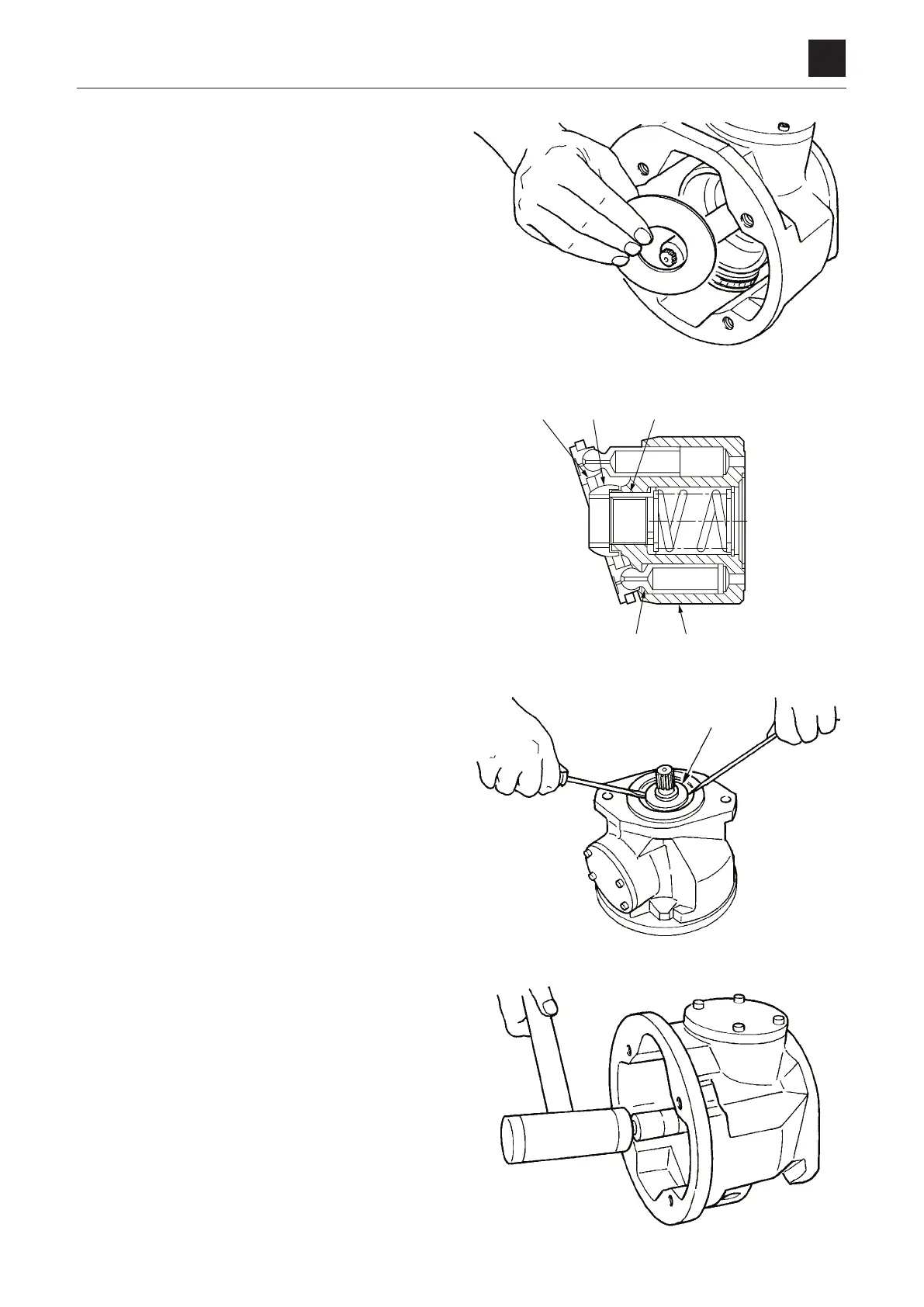

b. Remove the plate from the shaft.
c. Remove the guide (3), pins (5), retainer (5) and pis-
tons (6) fr
om the cylinder block (7).
• Do not disassemble the cylinder block (7) unless
necessary.
8. Take out the snap ring and remove the oil seal case (8)
and the O-ring.
• When removing the oil seal case, use two flat head
screwdrivers as shown in the figure.
9. Tap the shaft rear end with a plastic hammer and re-
move the shaft.
