4-54
4
HYDRAULIC PUMP
DISASSEMBLY AND ASSEMBLY

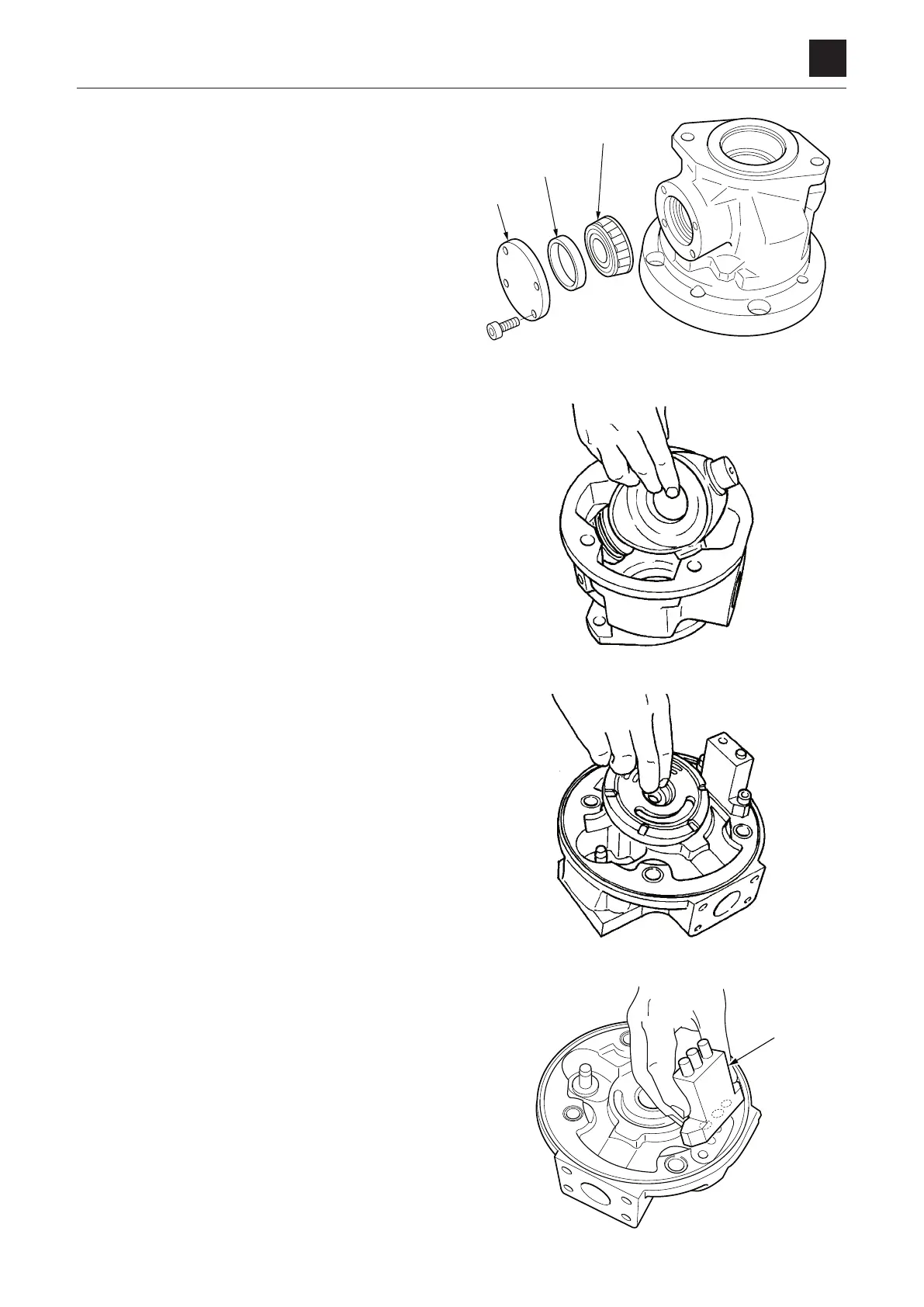

10. Disassemble the swash plate section.
a. Take out the cap screw and remove the plate (9).
b. Remove the distance piece (10).
c. Remove the bearing (11).
d. Remove the swash plate.
11. Disassemble the cover section.
a. Remove the valve plate.
b. Take out the cap screw and remove the piston con-
tr
ol section (14).
• Do not disassemble the piston control section
(14) unless necessary.
• Loctite #270 has been applied on the cap
screw.
