HYDRAULIC PUMP
DISASSEMBLY AND ASSEMBLY

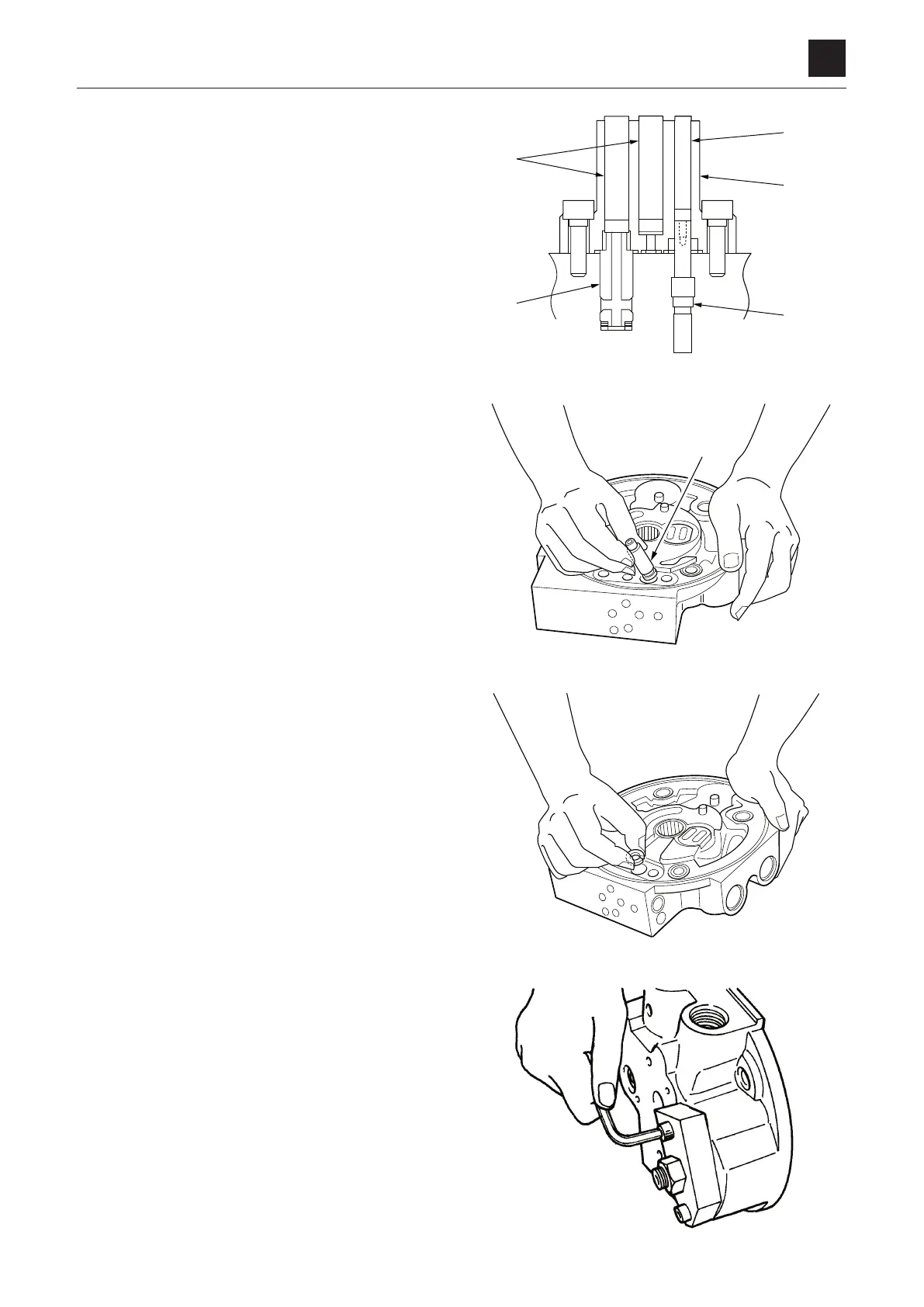

c. Remove the pin (12) and the piston (13) from the
cylinder (14).
d.
For the machine with an air conditioner, remove the
piston (15). (Only the machine with an air condition-
er)
e.
Remove the piston (16).
f. Remove the three conical spring washers and the
spring seat.
g.
Take out the cap screws and remove the cover.










