HYDRAULIC PUMP
DISASSEMBLY AND ASSEMBLY

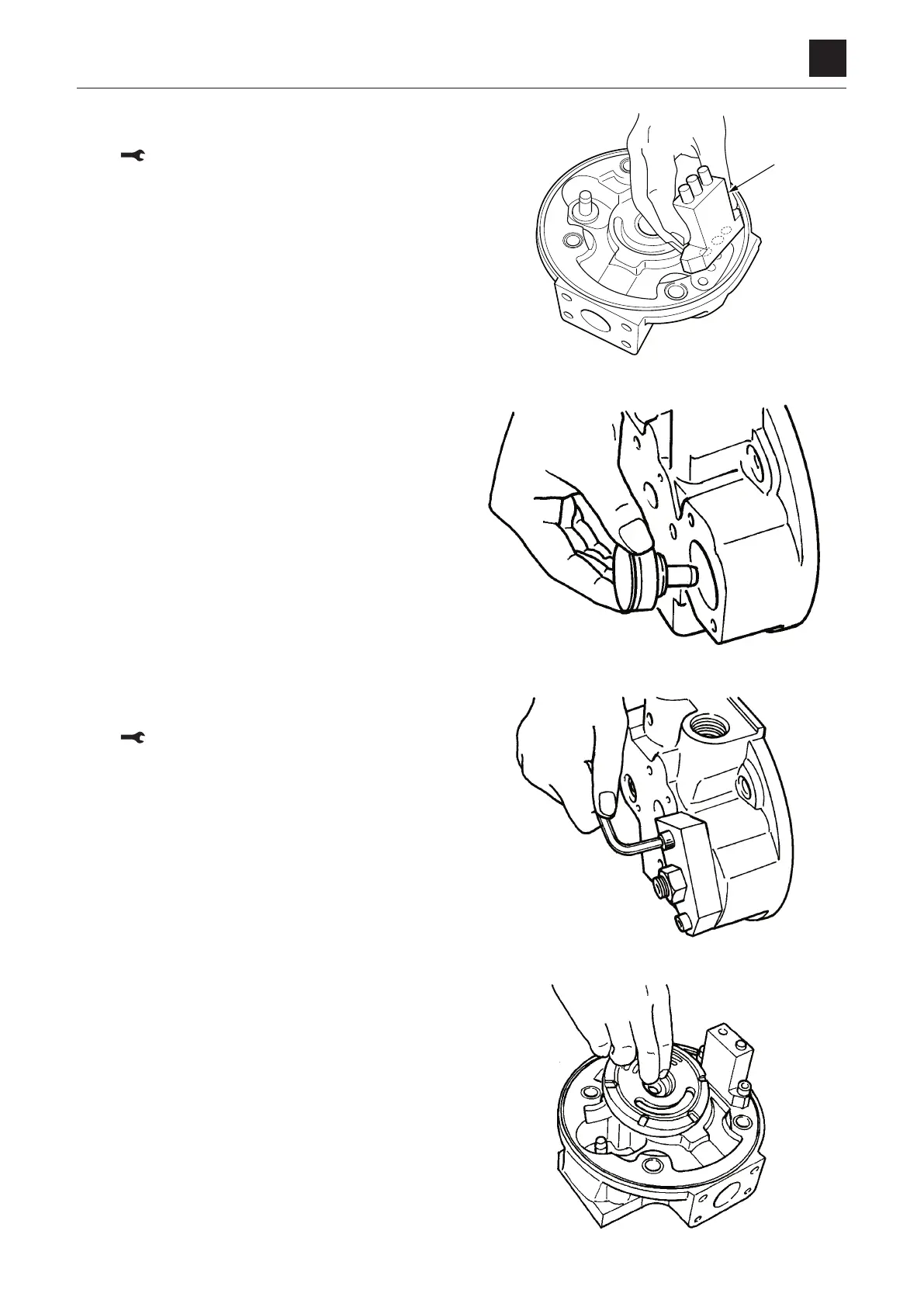

f. Place the cylinder (14) in the specified position and
secure it using the cap screws.
Cap screw: 28 to 35 N·m
Apply Loctite #270.
g. Fit the O-ring to the spring seat and install the spring
seat.
h.
Place the cover in the specified position and secure
it using the cap screws.
Cap screw: 28 to 35 N·m
i. Apply grease on the back of the valve plate and in-
stall it on the cover by aligning the knock hole.
j.
Install the O-rings (large and small) on the cover.
To Next Page
