4-65
4
HYDRAULIC PUMP
DISASSEMBLY AND ASSEMBLY

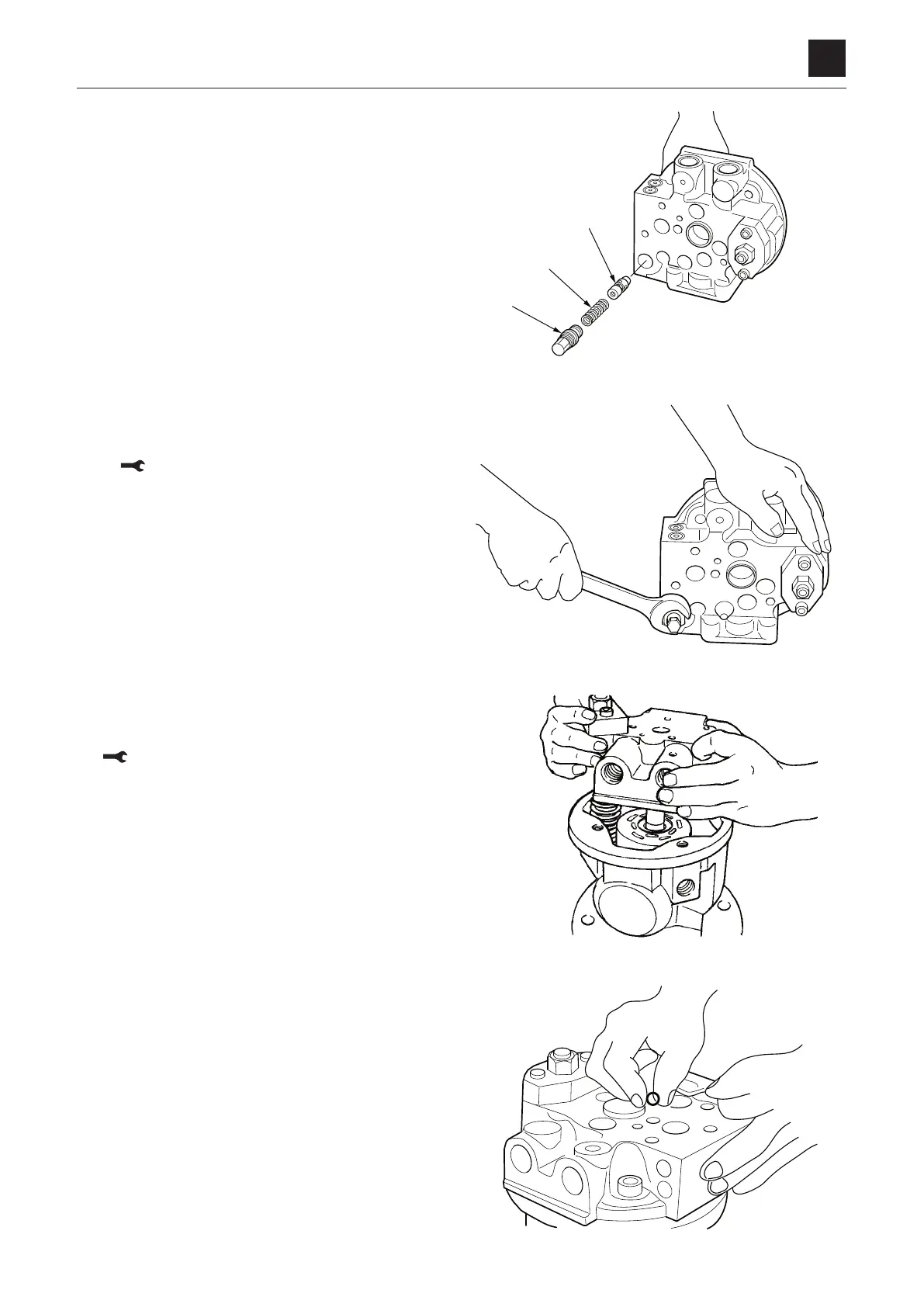

13. Install the relief valve.
a. Install the spool (19).
b. Install the spring (18).
c. Fit the shim to the setscrew (17) and install it on the
cover.
d. Install the nut.
• After assembly, set the pressure and secure the
valve.
Nut: 9.8 N·m
14. Install the cover and secure it using the cap screws.
• When installing, keep the cover parallel to the hous-
ing surface the cover to be installed.
Cap screw: 98 to 123 N·m
15. Install the O-ring and the bushing on the cover.
