PILOT VALVE (TRAVEL)
DISASSEMBLY AND ASSEMBLY

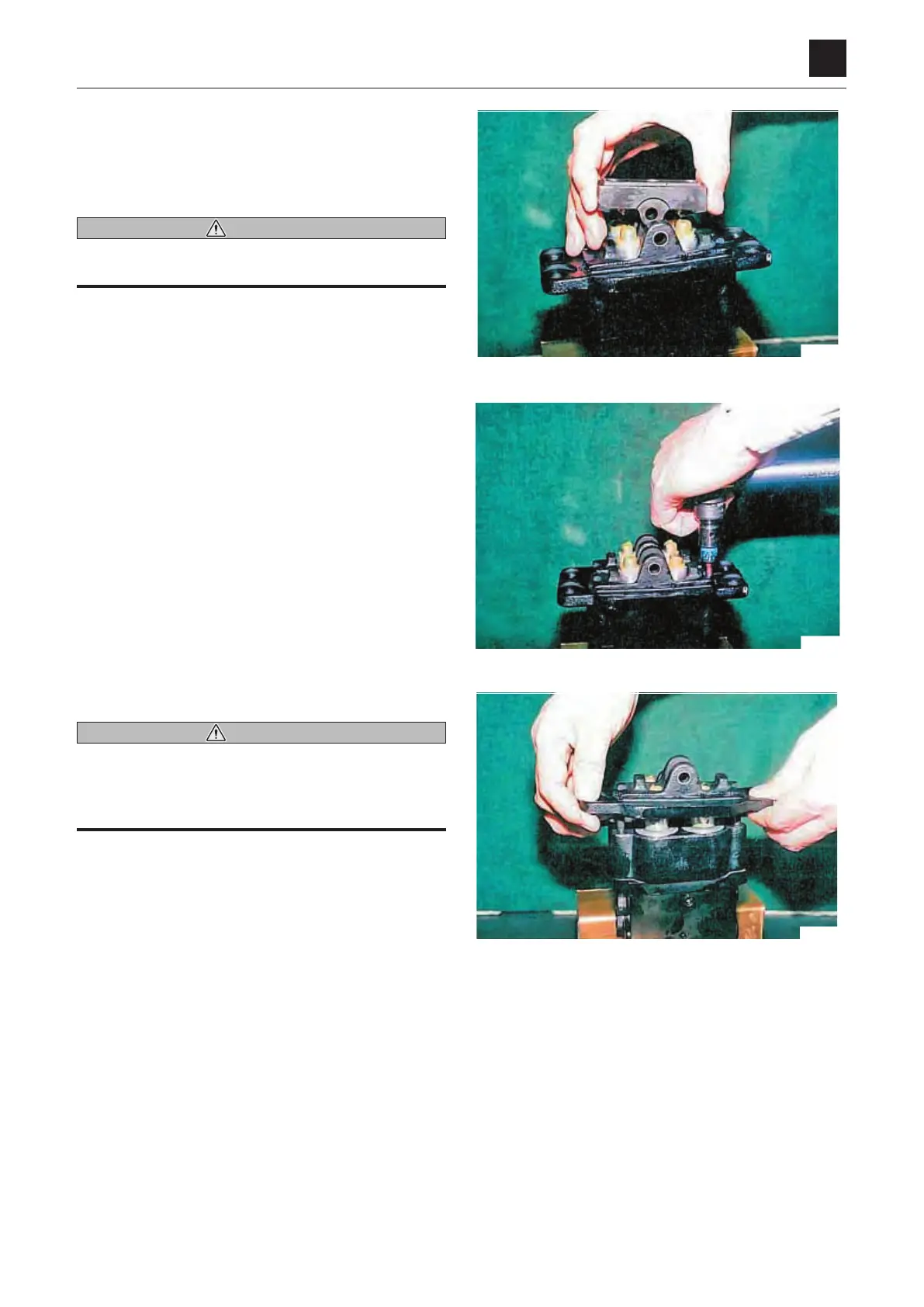

5. Remove the cam.
• Handle the cam and ball bearing as an integral as-
sembly (cannot be taken apart).
• Note down the position of the cam relative to the
cover.
WARNING
When removing the cam, there is a risk that the push
rod (214) may pop out.
6. Loosen the cap screws with a hexagon spanner.
7. Remove the cover.
WARNING
When removing the cover, there is a risk that the push
rod and the plug may pop out.
• Note down the position of the cover relative to the
casing.
To Next Page
