PILOT VALVE (TRAVEL)
DISASSEMBLY AND ASSEMBLY

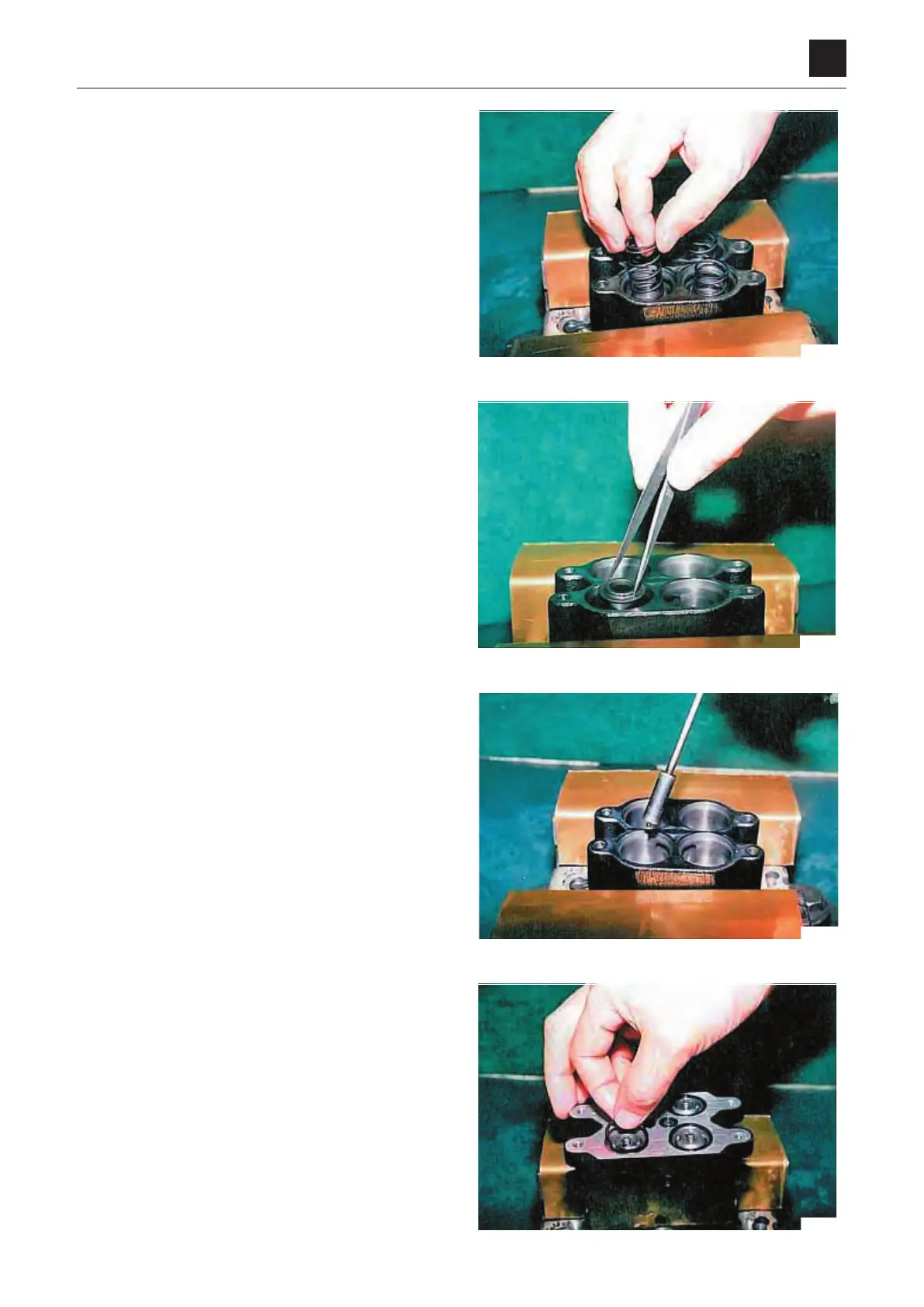

12. Remove the damping spring from the casing
• Note down the position of the damping spring rela-
tive to the casing hole.
13.
Pull out the spring seats from the casing by using twee-
zers or the like.
• Note down the position of the spring seat relative to
the casing hole.
14.
Remove the balls by using a magnet or the like.
• Make sure not to loose the balls.
15. Secure the lower casing assembly in a vise, and then
remove the O-ring from the casing.
To Next Page
