PILOT VALVE (TRAVEL)
DISASSEMBLY AND ASSEMBLY

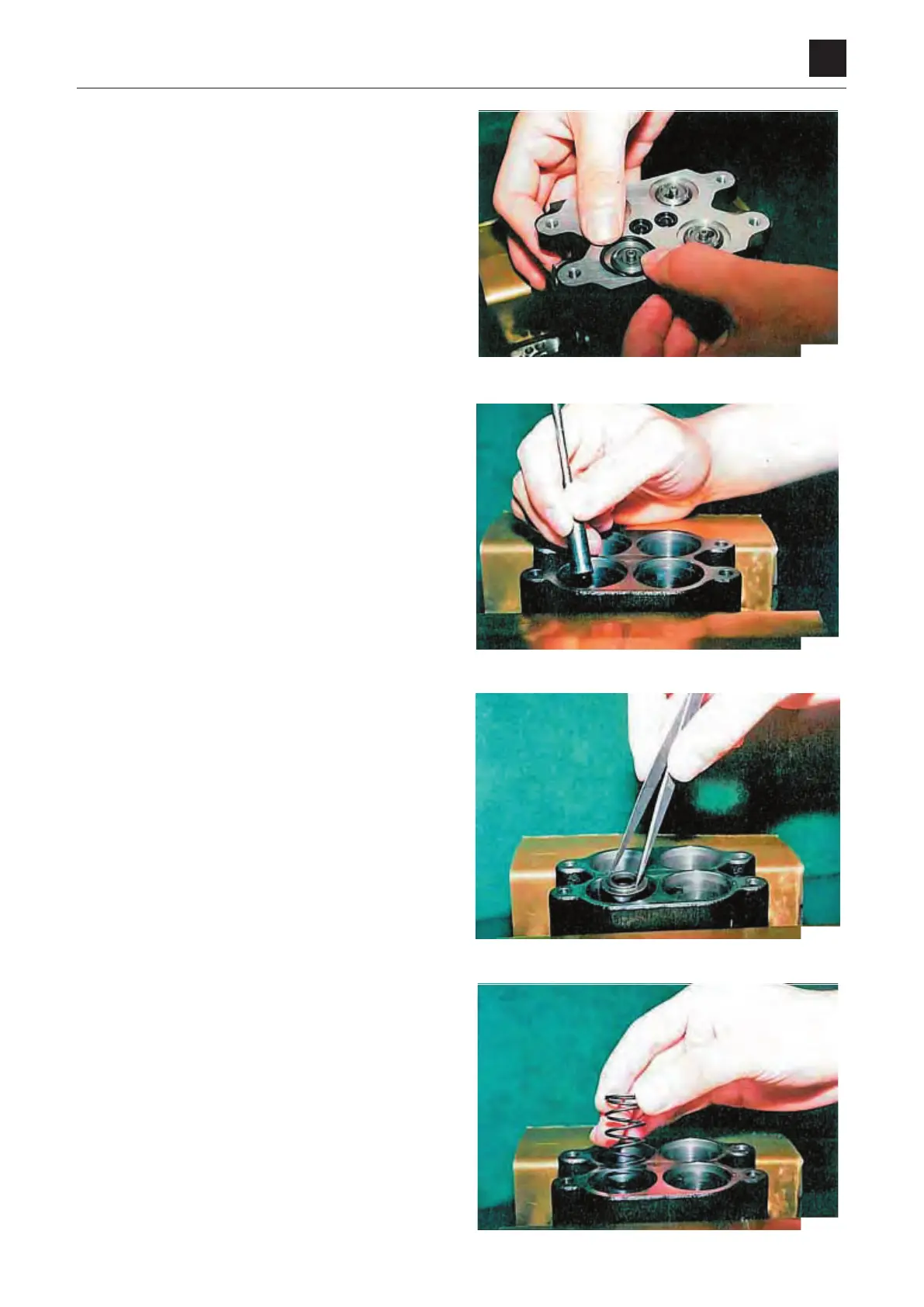

5. Install the O-rings in the casing.
6. Secure the upper casing in a vise and install the balls.
7. Install the spring seats with tweezers or the like in the
casing.
• Install the spring seats in the positions they were in
before disassembly.
8. Install the damping springs in the casing.
• Install the damping springs in the positions they
were in before disassembly.
• Take care not to allow the damping spring to rest on
the spring seat.
