PILOT VALVE (TRAVEL)
DISASSEMBLY AND ASSEMBLY

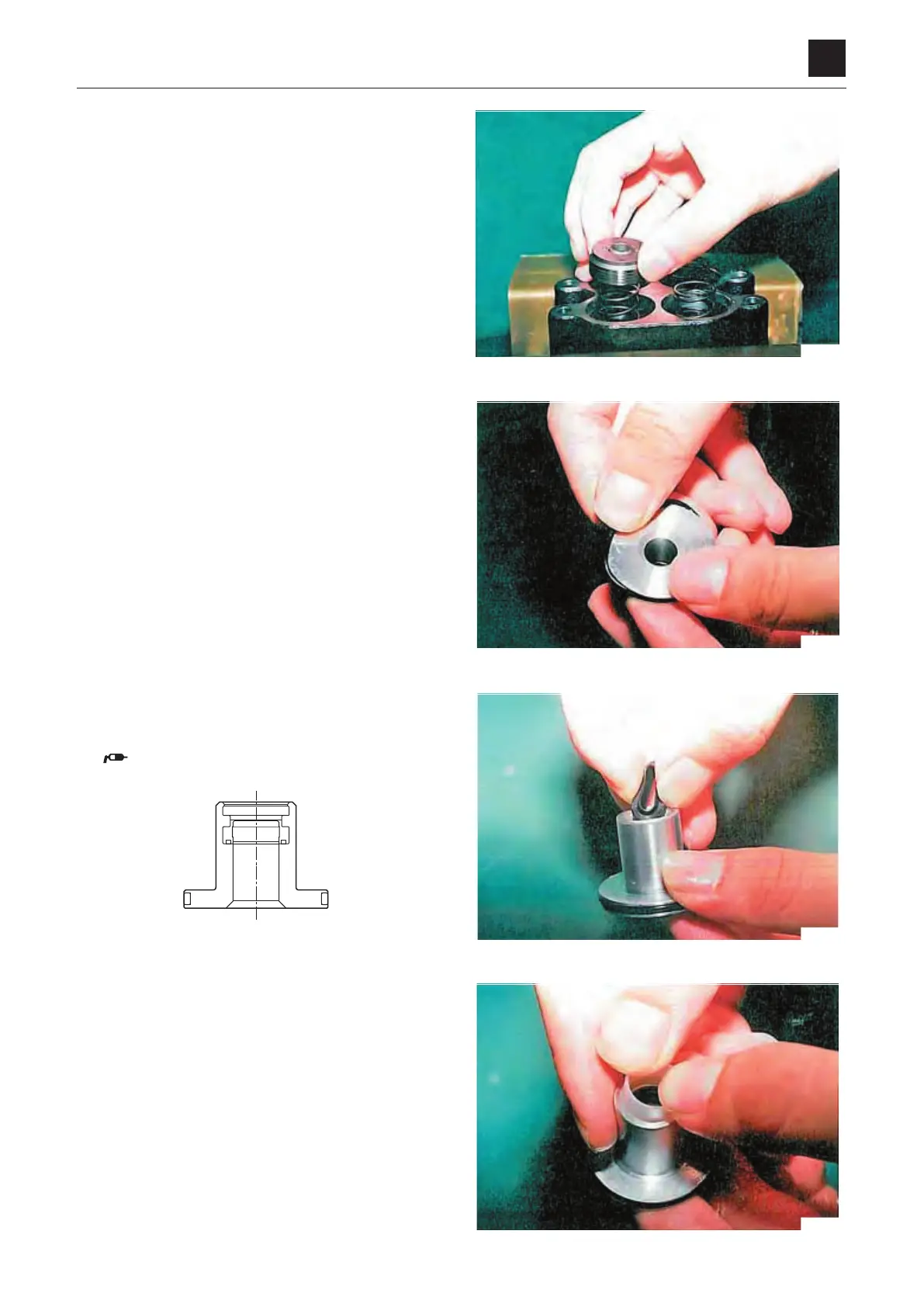

9. Install the pistons.
• Install the pistons in the positions they were in be-
for
e disassembly.
10. Install the O-ring on the plug.
11. Install the packing on the plug.
• Be sure to install the packing in the correct direc-
tion.
Apply a thin layer of grease to the packing before
installing it.
12.
Install the grease cup on the plug.
