4-117
4
PILOT VALVE (TRAVEL)
DISASSEMBLY AND ASSEMBLY

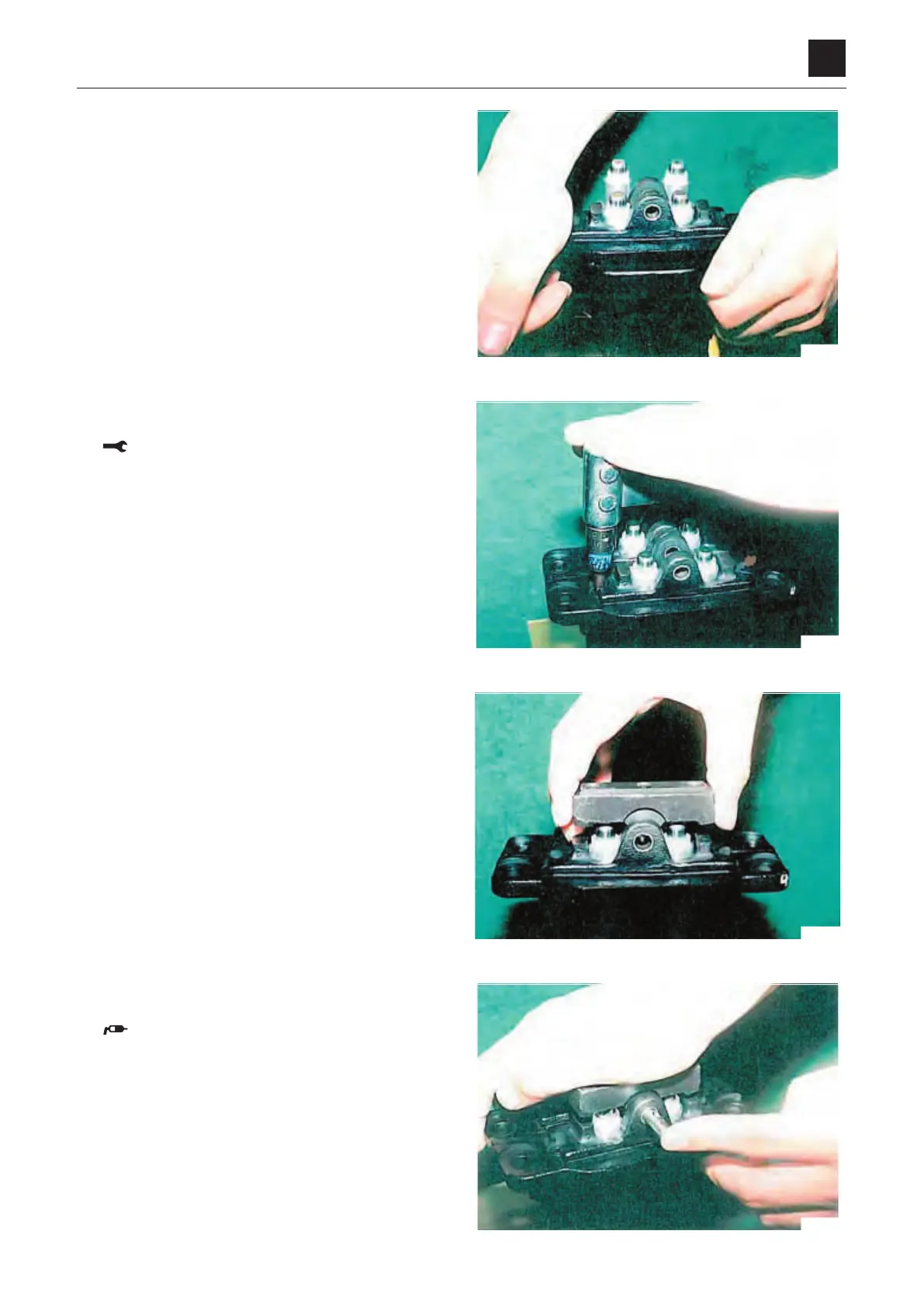

17. Install the cover in the casing.
• Install the cover in the position it was in before dis-
assembly.
• Take care that the cover is not lifted by the damping
spring.
18.
Tighten the cap screws with the specified torque.
• Make sure that the cover is in a level position.
Cap screw: 8.8 ±0.8 N∙m
19. Install the cam in the casing.
• Install the cam in the position it was in before disas-
sembly.
20.
Insert the cam shaft from the outside while holding
down the cam.
Apply grease to the sliding parts of the cam shaft
bearing.
