4-118
4
PILOT VALVE (TRAVEL)
DISASSEMBLY AND ASSEMBLY

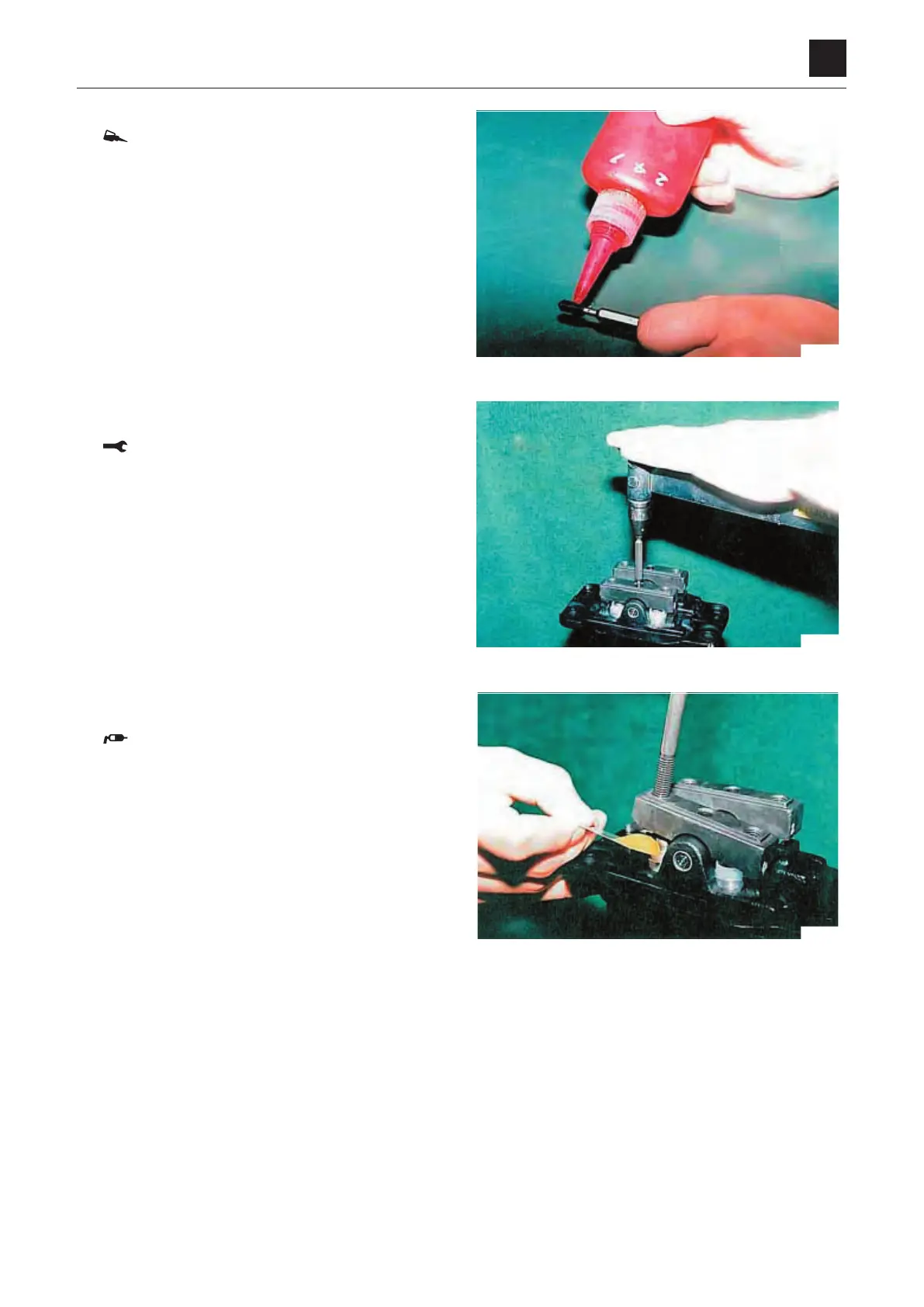

21. Apply Loctite to the surface of the hexagon setscrew.
Hexagon setscrew: Loctite #241
22. Tighten the hexagon setscrew with the specified
torque.
Hexagon setscrew 6.9 ±1 N∙m
23. Tilt the cam and apply grease to the head of the push
road, and fill grease into the grease cup of the plug.
To avoid scratching the surfaces of the push rod
and the plug when applying or filling grease, use a
spatula made of a soft material.
To Next Page
