TRAVEL MOTOR
DISASSEMBLY AND ASSEMBLY

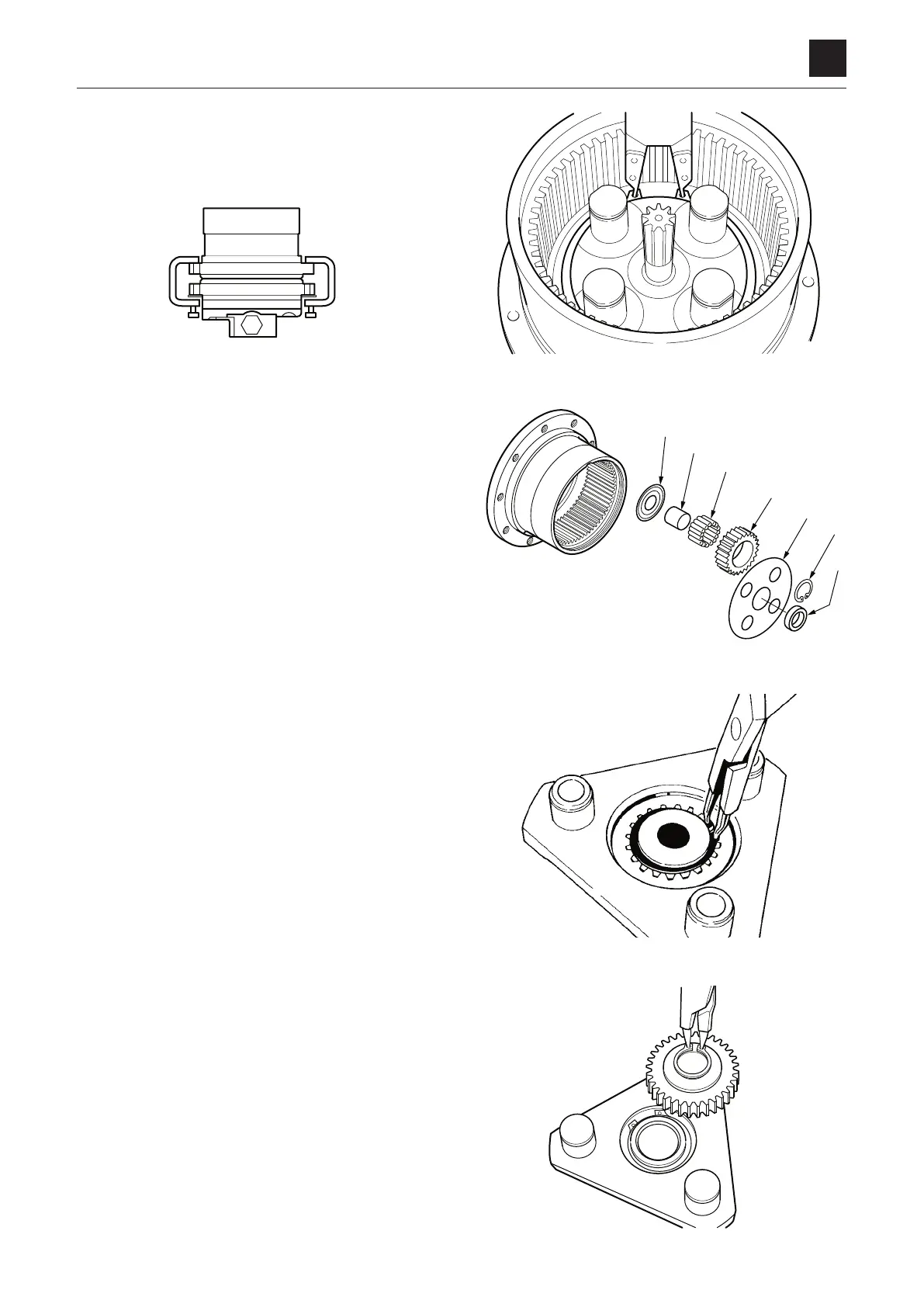

4. Assemble the housing and the hydraulic motor and se-
cure them with a snap ring.
• Fix the reduction gear and the flange holder with a C
clamp or a hydraulic press, and secure them with a
snap ring.
5. Install the thrust plate (3), ring (4), gear B1 (5), needle
(6) and thrust plate (7) on the pin, and then secure them
with a snap ring (8).
• Do not spread the snap ring more than necessary.
• Install the snap ring with the edge facing the cover.
6. Place the thrust collar (9) in the center of the thrust
plate (7).
7. Install the gear S1 on the carrier 2 and secure it using
the snap ring.
8. Install the thrust washer, gear B2, needle and thrust
washer on carrier 2, and secure them with a snap
ring.
