4-169
4
SLEW MOTOR
DISASSEMBLY AND ASSEMBLY

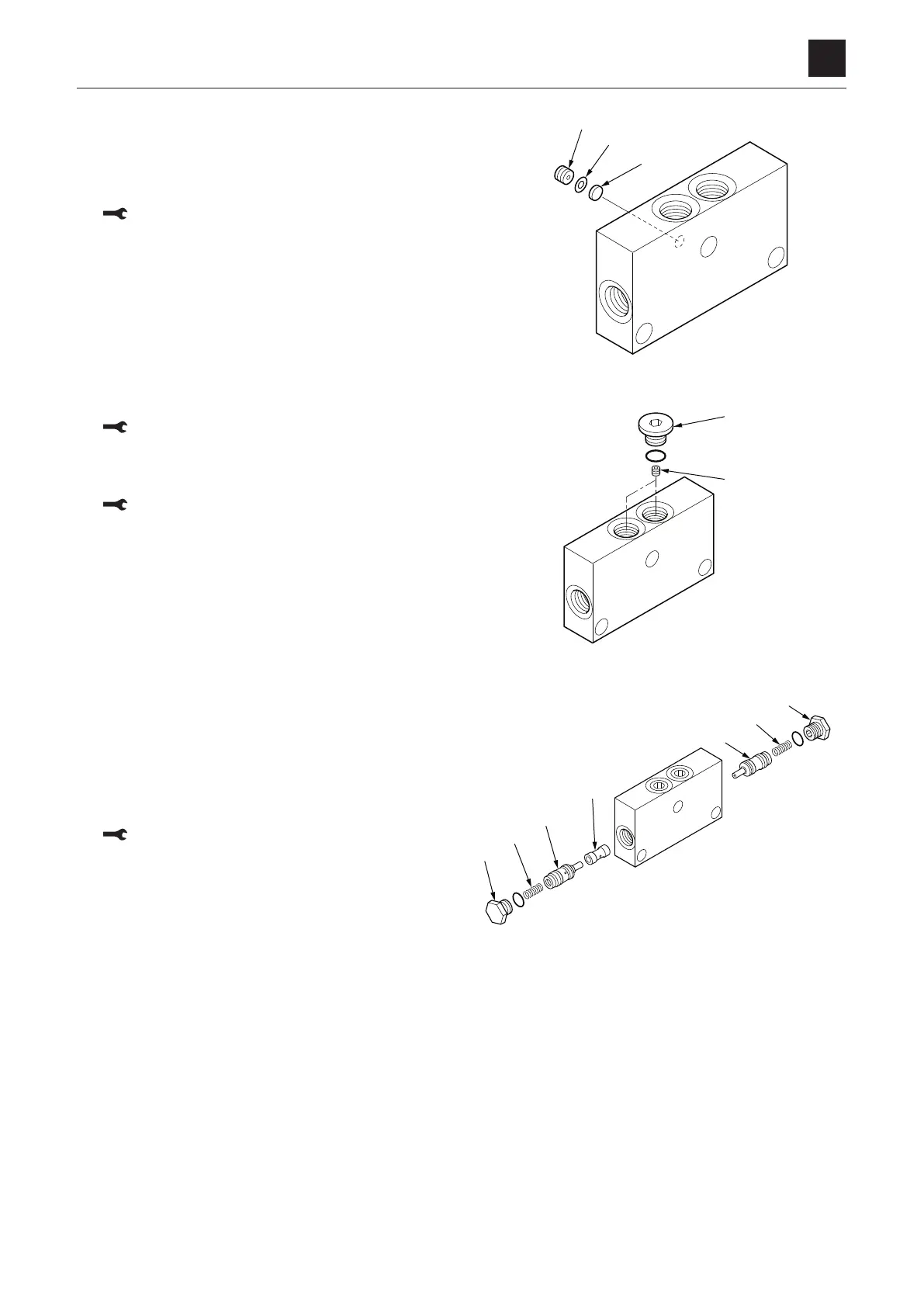

Assembly
Anti-rebound valve
1. Install the orifice (7), washer (8) and filter (9) on the valve
body.
• Use a new filter.
Orifice: 4.9 N·m
2. Install the orifice (6) on the body.
Orifice: 2.45 N·m
3. Attach the O-ring on the plug (5) and install them on
the valve body.
Plug: 61.8 N·m
4. Install the sleeve (4) on the body.
5. Install the check valve assembly (3) and spring (2) on
the body.
6. Attach the O-ring on the plug (1) and install them on
the valve body.
Plug: 61.8 N·m
