SLEW MOTOR
DISASSEMBLY AND ASSEMBLY

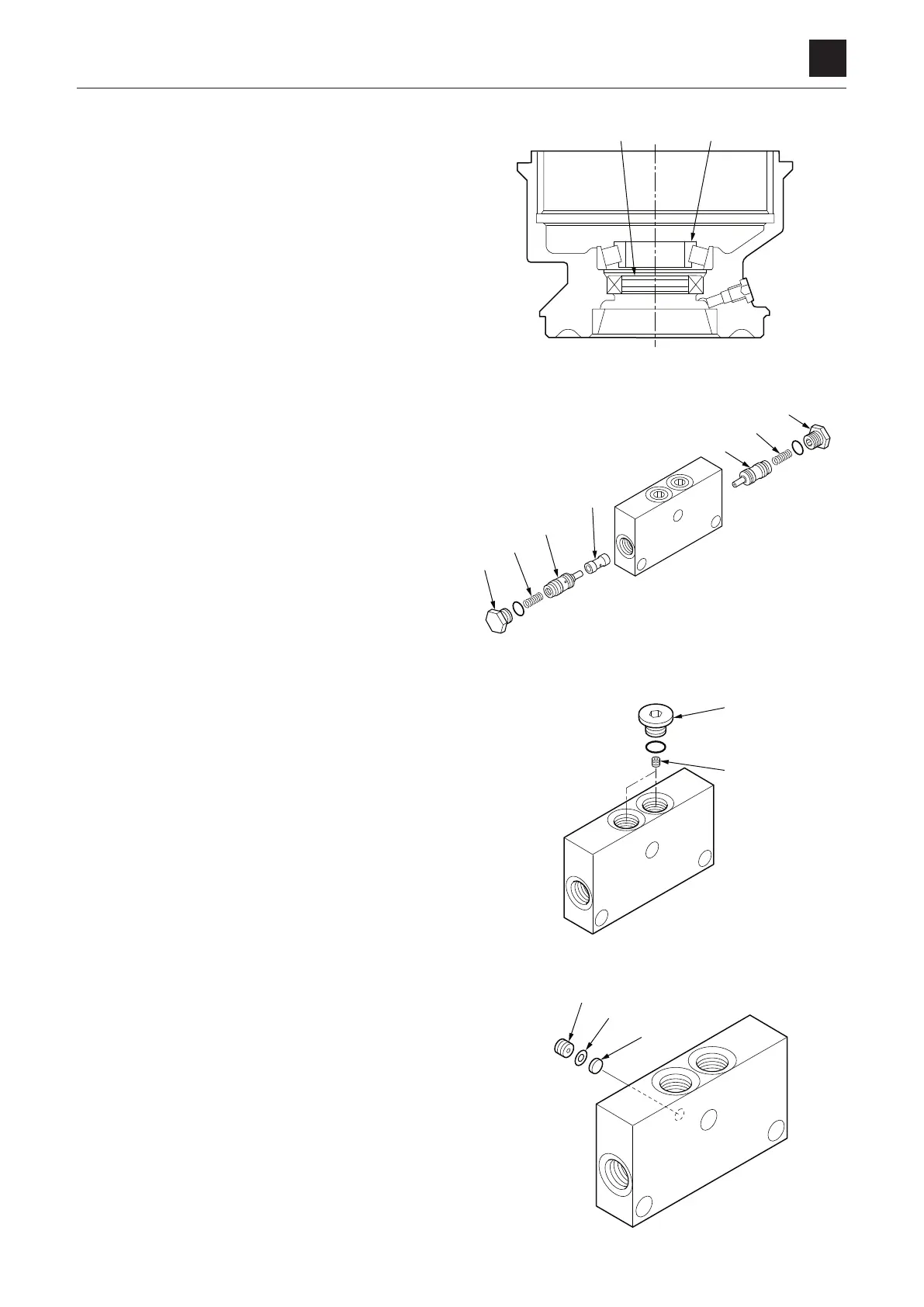

11. Remove the inner race of the bearing (20).
• A removed oil seal cannot be reused.
• Be careful not to damage the outer race of the bear-
ing.
12.
Remove the oil seal (21).
• Removed oil seal cannot be reused.
Anti-rebound valve
1. Take out the plug (1) and remove the plug (2).
2. Remove the check valve assembly (3).
3. Remove the sleeve (4).
4. Take out the plug (5) and remove the orifice (6).
5. Remove the orifice (7), washer (8) and filter (9).
• Replace the filter every time you disassemble the
anti-rebound valve.
