Team Blacksheep CROSSFIRE - VTX Connection Methods



Vtx connection by CRSF
All Unify32 and Evo line VTx’s from TBS are capable of using CRSf to communicate with the Crossfire
ecosystem.
● Select a free output pin capable for CRSF (check the output map section for available outputs)
● Set the Unify32 to CRSF by button or USB (Evo and Unify32 HV)
● Connect them (Crossfire Tx to VTx Rx, Crossfire Rx to Unify Tx)

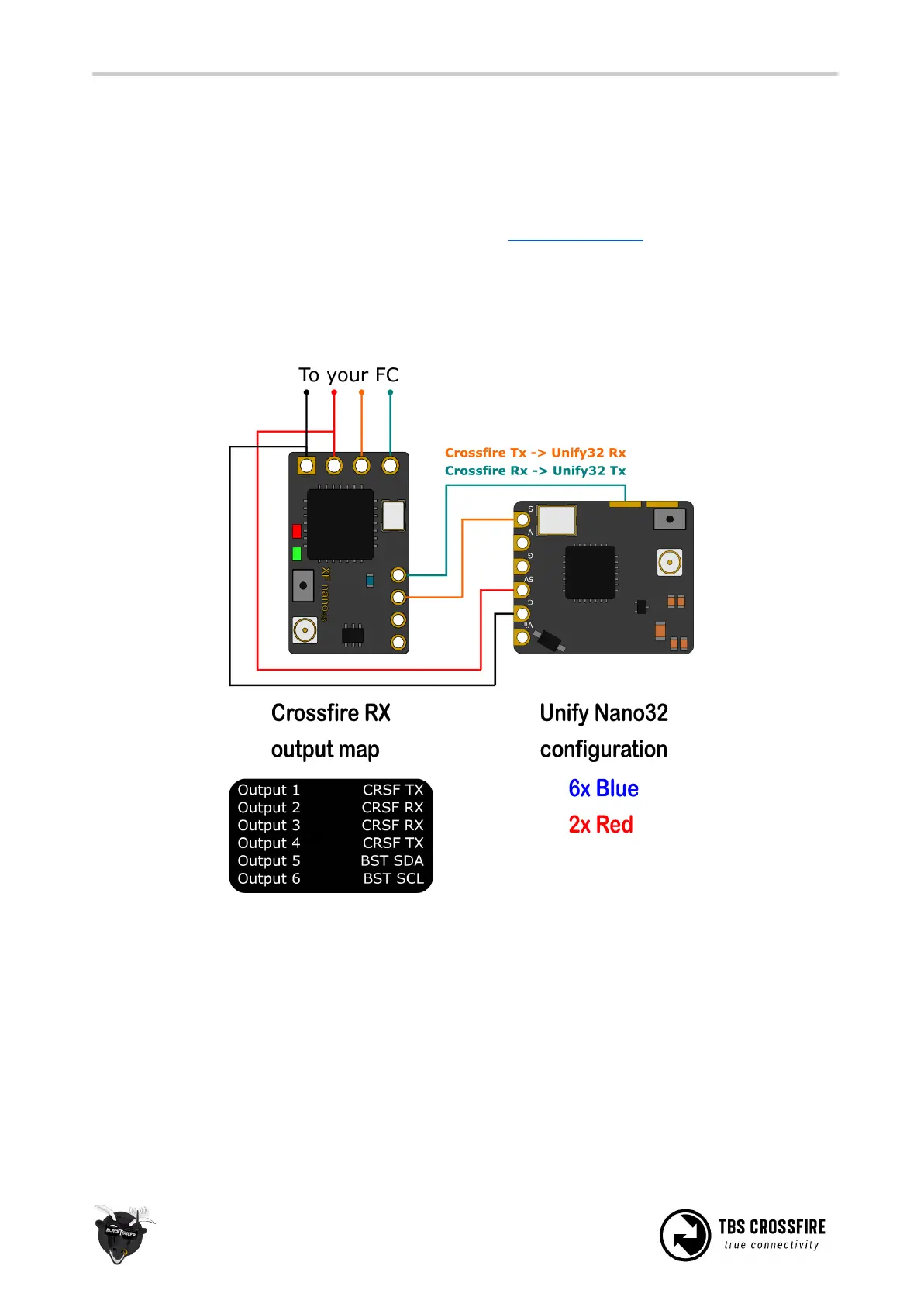

Wiring example:

 


