Wireless configuration with BetaFlight/ Inav by Bluetooth

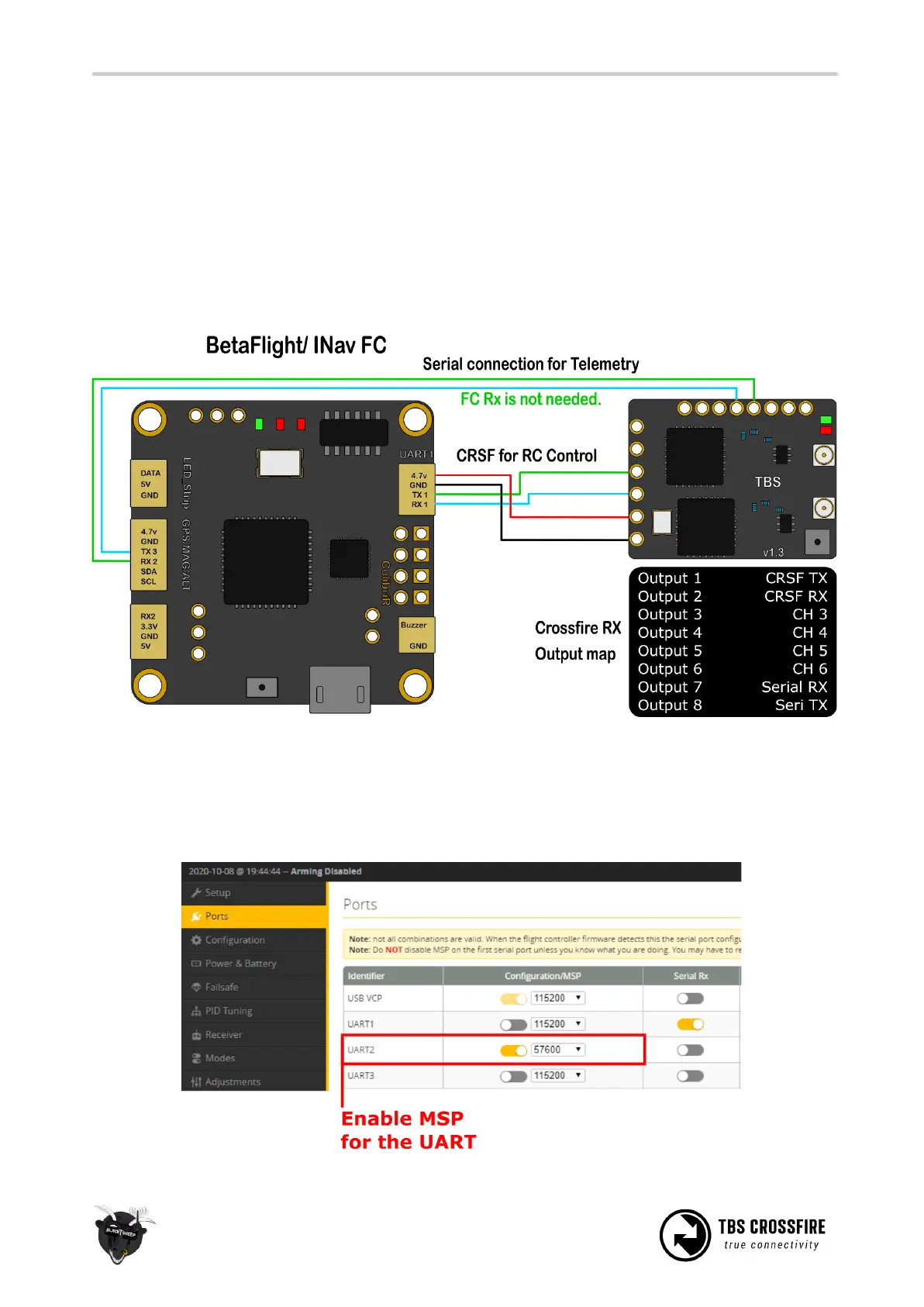

With the serial passthrough function of the Bluetooth module (Standard tx only) you can connect to your
BetaFlight/ Inav Fc without the for a USB connection. For this to work, you need to connect a second
connection between the Crossfire Rx and the FC
Note:
This will only work while your Crossfire is in the 150hz mode. As soon as the link switches to 50Hz, the
Bluetooth module stops sending serial data
Betaflight/ Inav setup
Enable MSP for the UART and set the Baud Rate to57600. When you want to connect to the Betaflight/ Inav
configurator, select the Com port of your pc and set the Speed to 57600baud as well.
