*31541 – Min. Pitch Slope
The minimum pitch permitted in terms
of calibration is set here.
to -5.00°.
*31542 - Max. Pitch Slope
The maximum pitch permitted in terms of calibration is set here.
+5.00°.
*31543 - Min. Roll Slope
The minimum roll permitted in terms of calibration is set here.
-5.00°.
*31544 - Max. Roll Slope
The maximum roll permitted in terms of calibration is set here.
+5.00°.
The following four parameters describe the inclination sensor. There are two
angular deviations relative to its bearing surface. The second (= installation cor-
deviations of the assembly cross beam on the tank truck. This enables the
inclination sensor to be exchanged without having to align the vehicle to 0°.

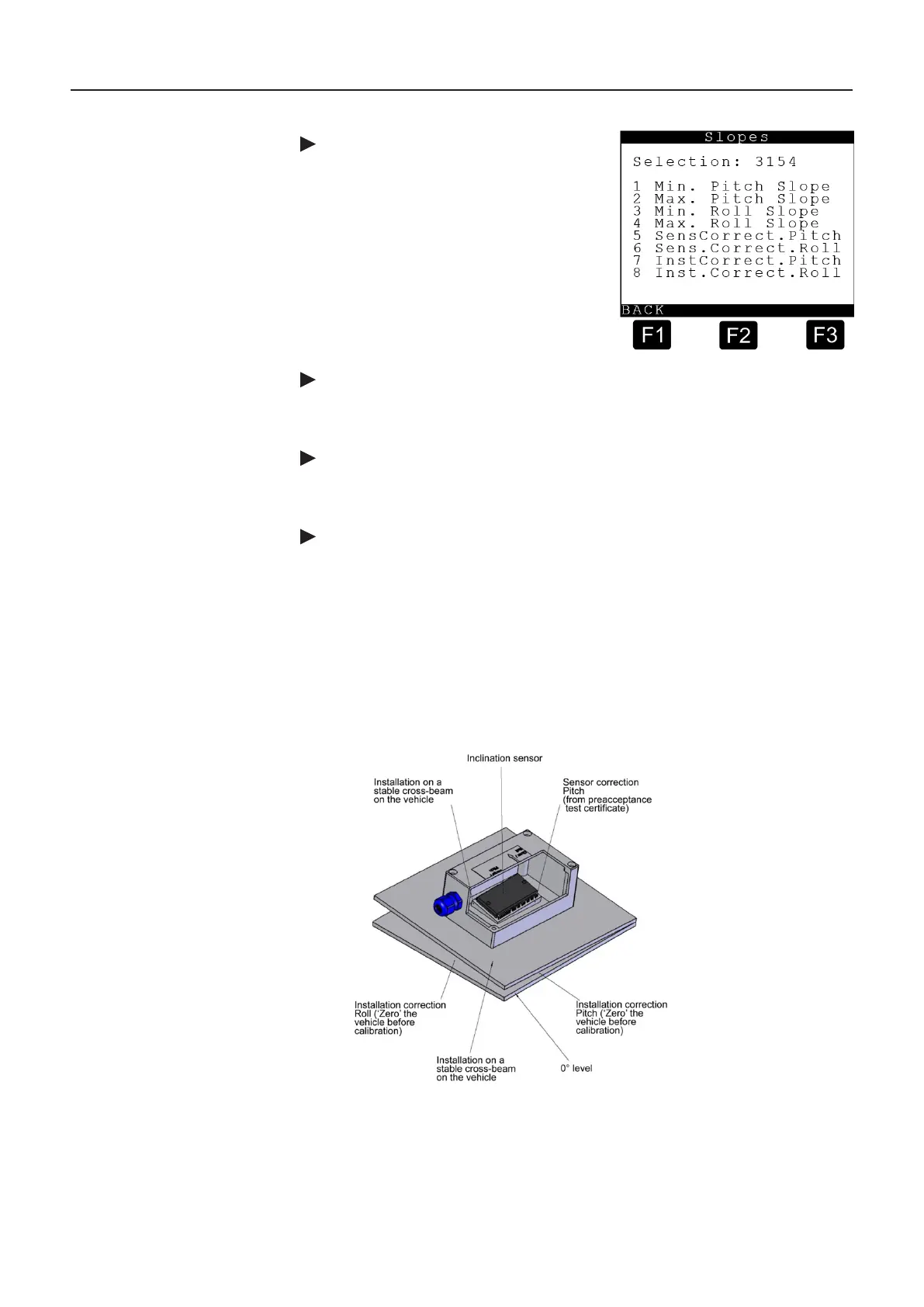

Figure 49: Angle definitions
MultiLevel Instruction Manual MENU structure
