JOG EXCITE: Service & Maintenance Manual - rev. 1.1
Page 7.21

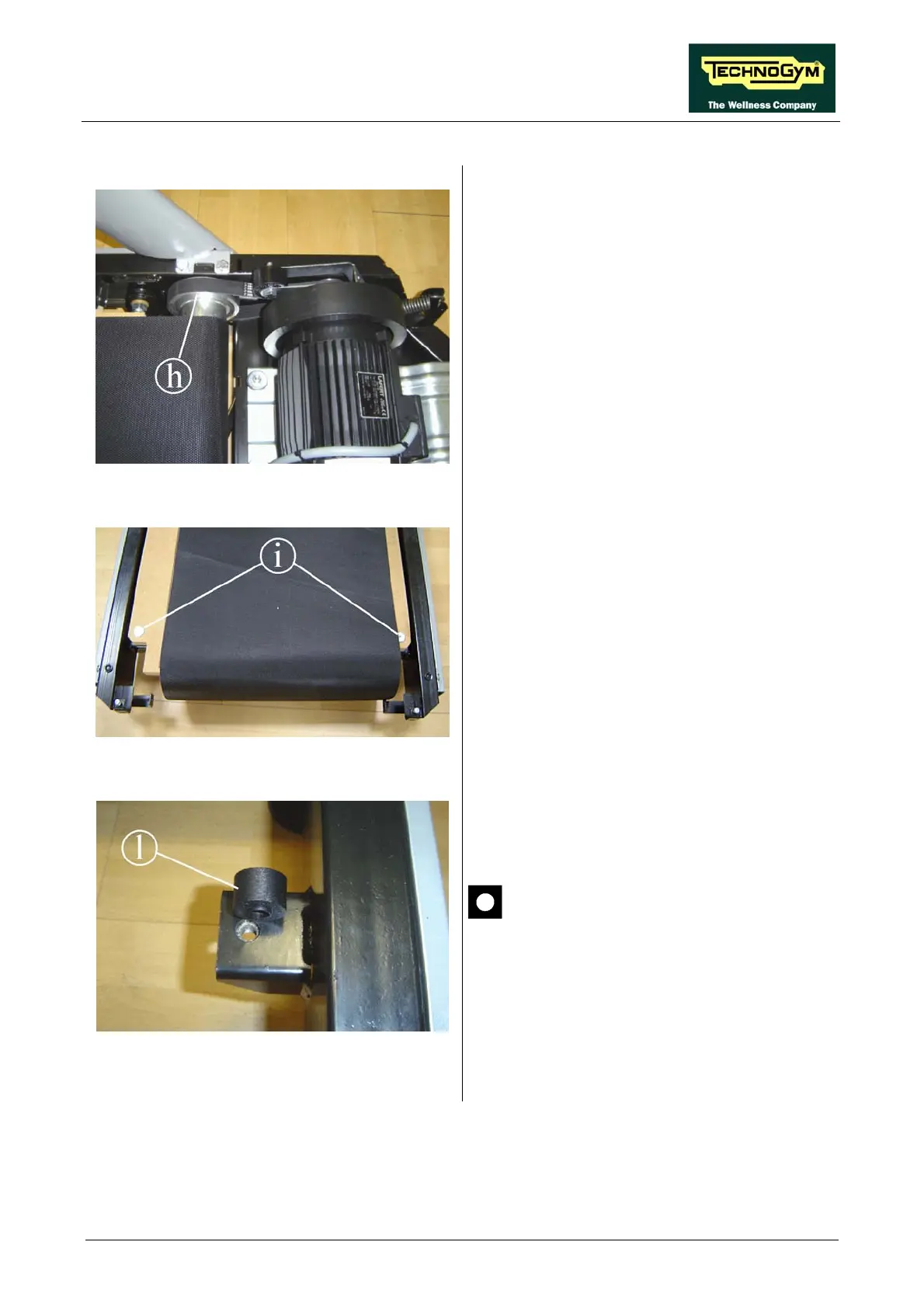

Figure 7.17-4
9. Disengage the motor drive belt from the
pulley h on the front roller.
10. Remove the driving roller, extracting it from
the top on the right side and pulling it out
axially from the left.
11. Remove the motor drive belt from the motor
pulley.
Figure 7.17-5
12. Back off the 2 screws i which are fixing the
running deck to the frame of the machine,
using a 6-mm hex wrench.
13. Remove the running deck from the side.
14. Fully back off the screws which release the
tension of the rear roller.
15. Remove the rear roller.
16. Remove the tread belt.
Figure 7.17-6
When reassembling the running deck,
remember to insert the plastic bushing
“l” on the rear supports.
Continued on following page →
