JOG EXCITE: Service & Maintenance Manual - rev. 1.1
Page 7.22

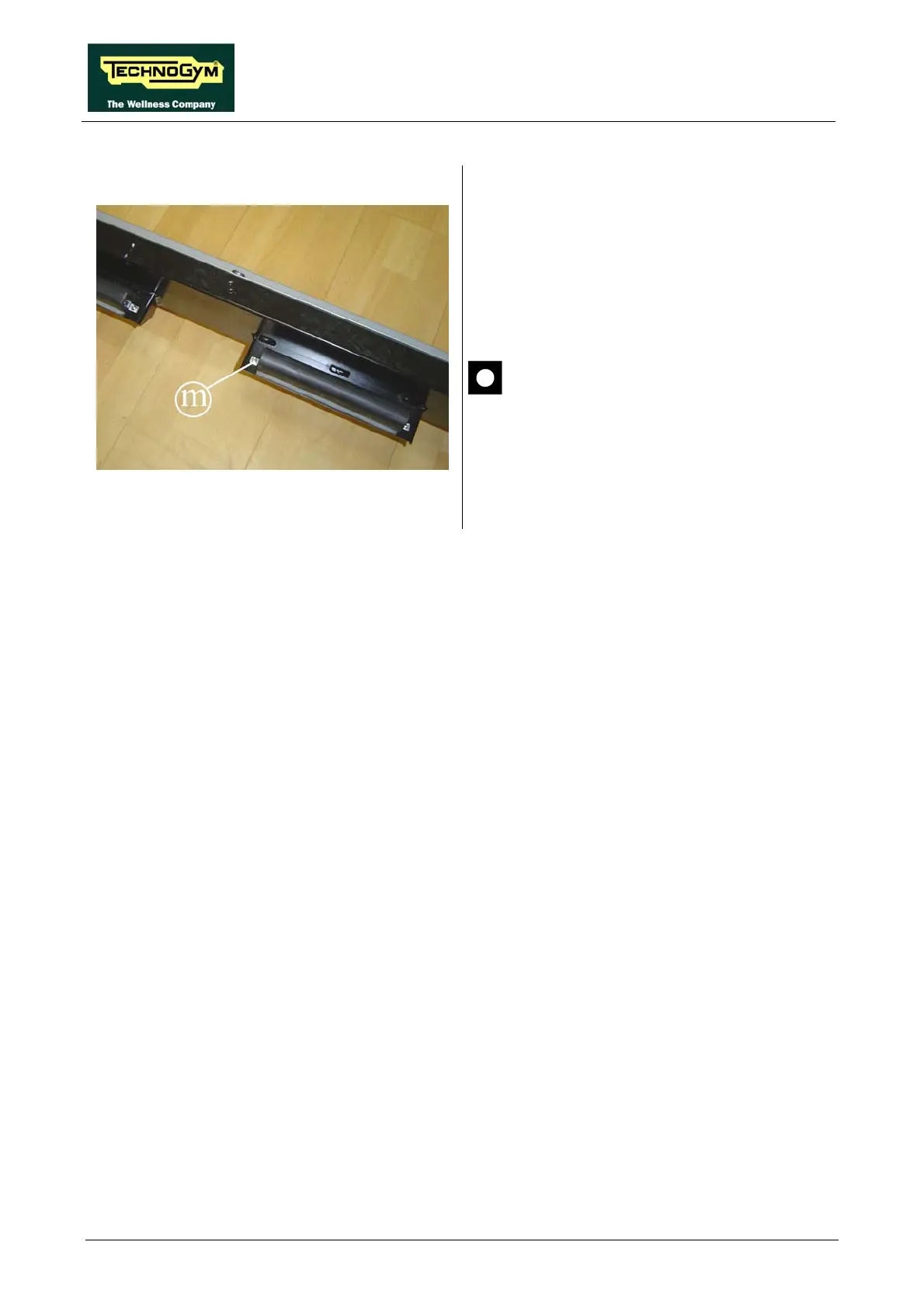

Figure 7.17-7
To disassemble the shock absorbers:
17. Lock down the nuts m using a 7-mm wrench
and back off the screws using a 3-mm hex
wrench, accessing it from below.
To reassemble the various components, carry out
the above steps in reverse order.
At the end of the procedure, check the
tension and alignment of the tread belt
as detailed at paragraph 8.1.
“Tensioning a new tread belt” or 8.2.
“Tensioning a used tread belt” and 8.3.
“Centering the tread belt”.
