7. DISASSEMBLY OF COMPONENTS
7.1. DISASSEMBLING THE DISPLAY

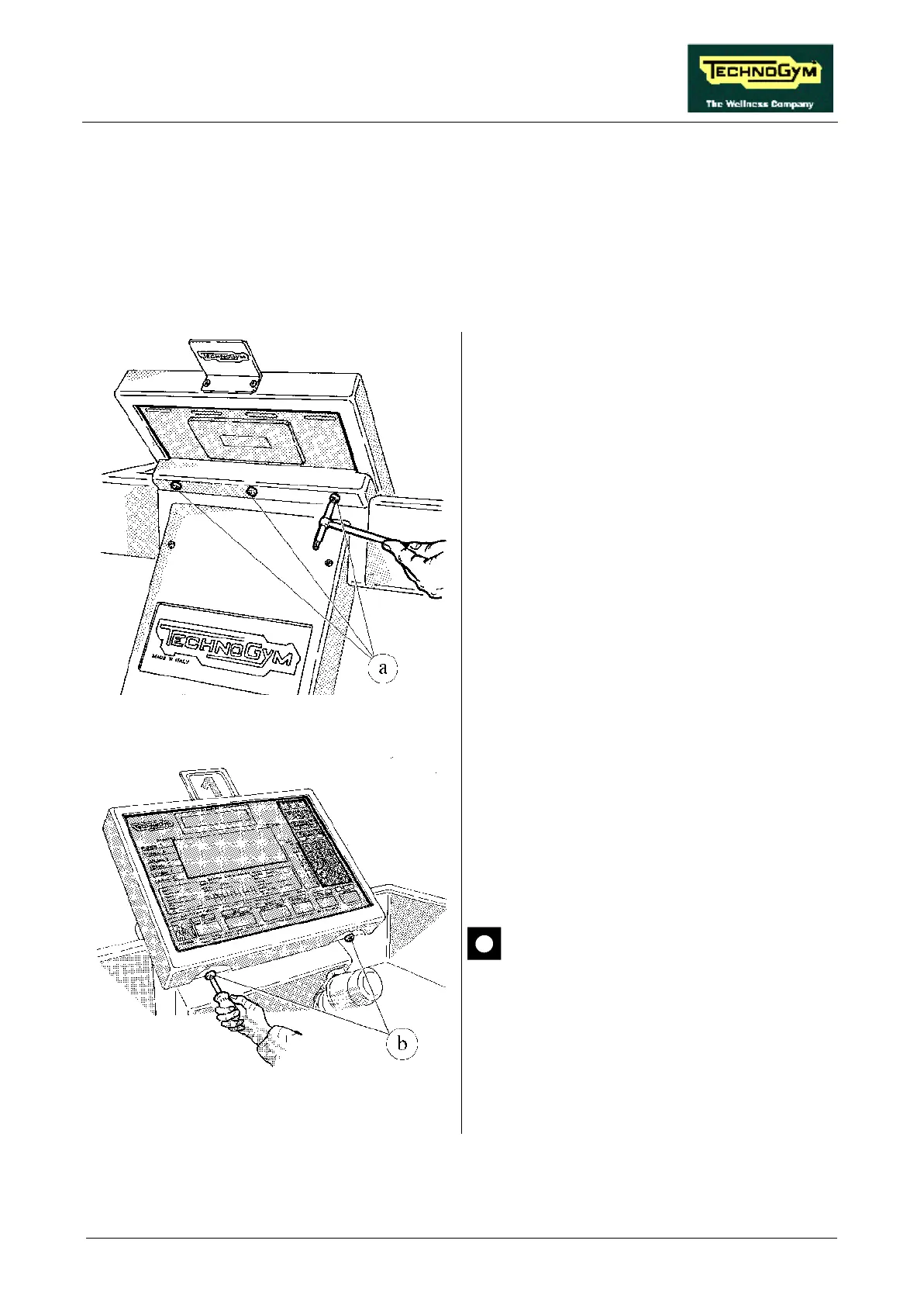

Figure 7.1-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Back off the 3 screws a using a 4-mm hex T
wrench.
Figure 7.1-2
3. Back off the 2 screws b using a medium
Philips screwdriver.
Support the DISPLAY before removing
the last screw.
Continued on the following page →
