7.26. DISASSEMBLING THE SPRING PULLEYS

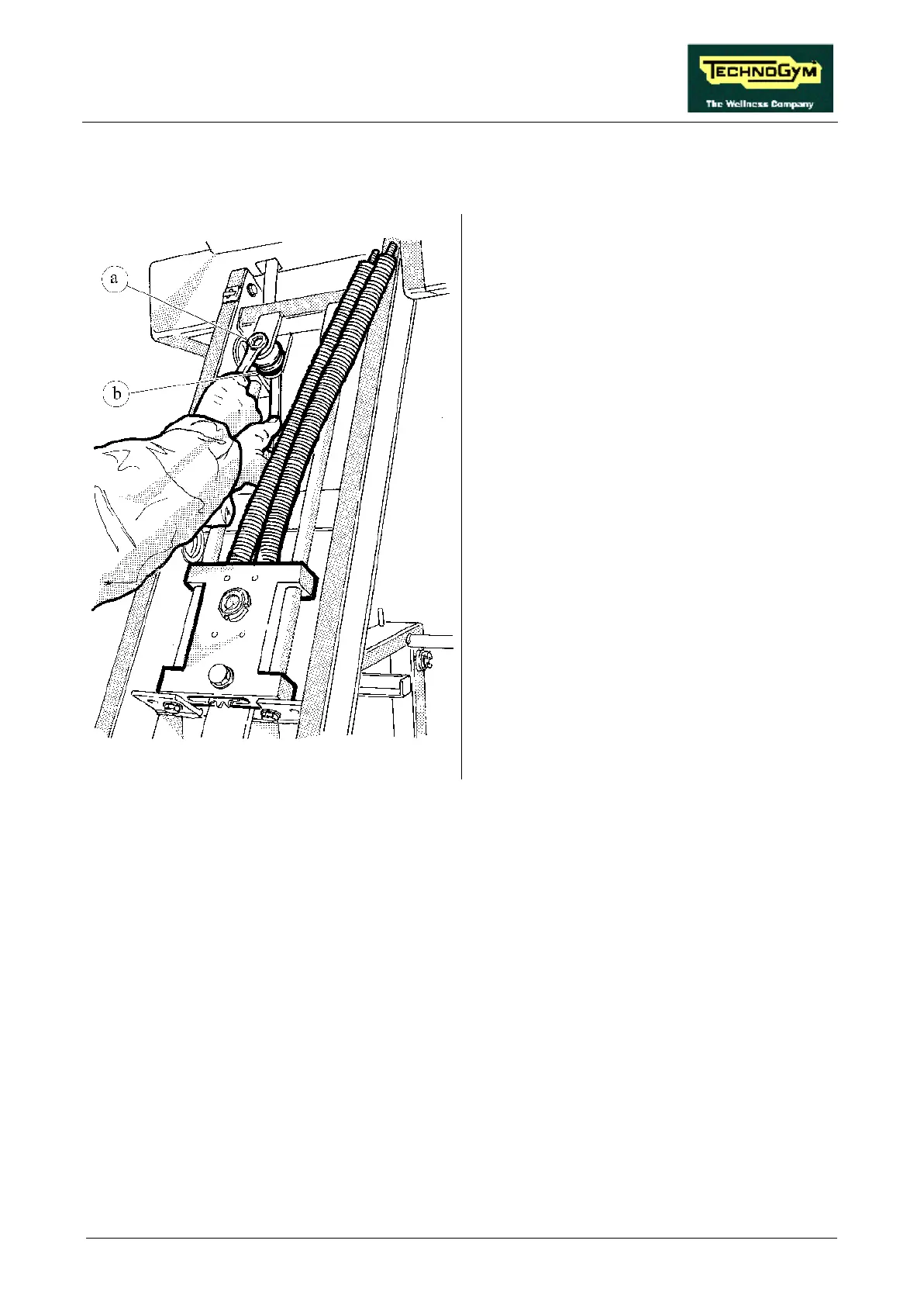

Figure 7.26-1
Carry out the procedures described in paragraph
7.25. “Disassembling the springs” leaving them
connected to the slide.
For each PULLEY:
1. Back off the self-locking nut a using a 17-
mm wrench, while holding its screw b in
place with a 17-mm wrench.
2. Remove the PULLEY and its spacers.
To reassemble the SPRING PULLEYS carry out
the above steps in reverse order.
