7.10. DISASSEMBLING THE HANDLEBARS

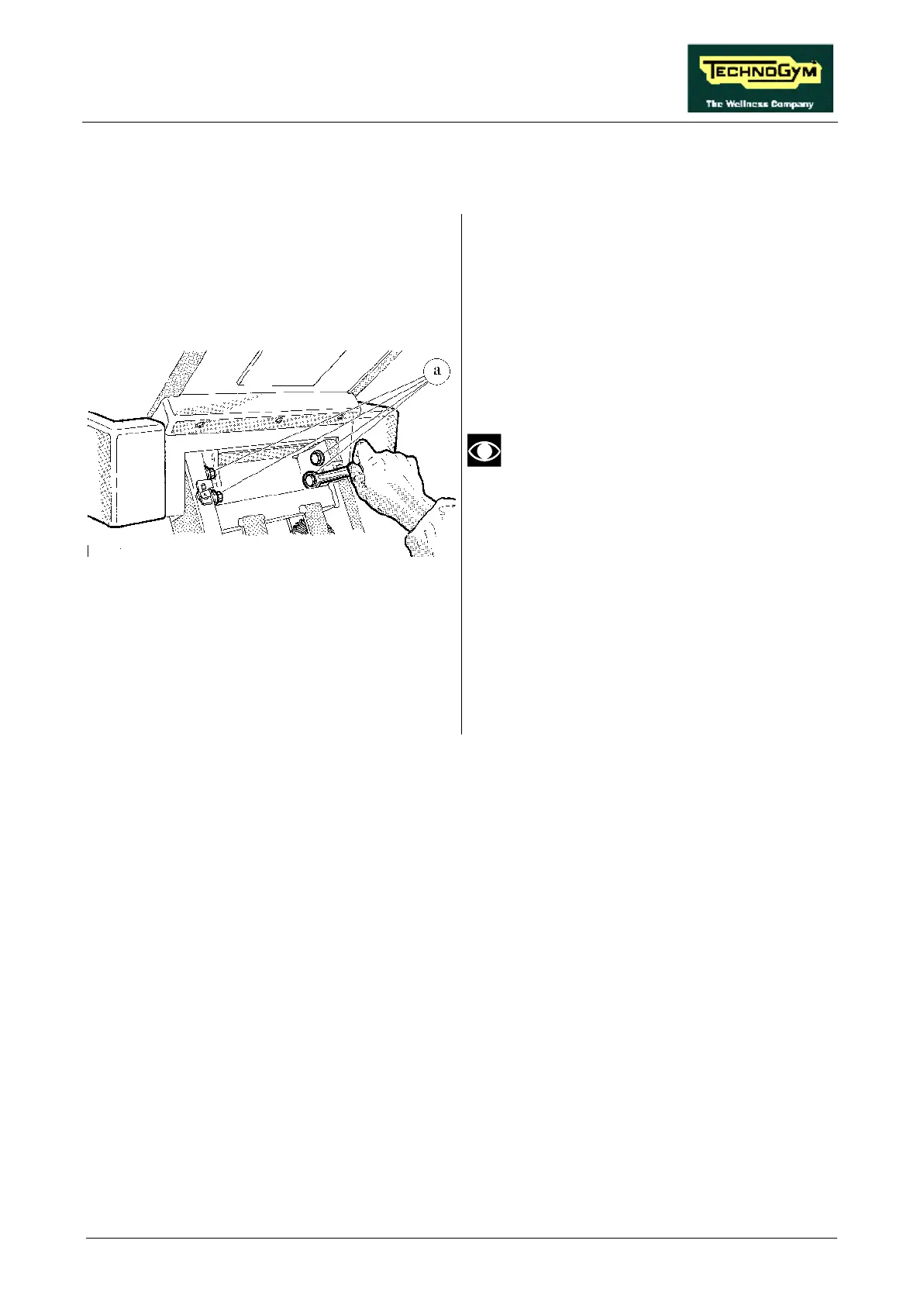

Figure 7.10-1
Carry out the procedure described in paragraph
7.6. “Disassembling the upright guard”.
For each SIDE HANDLEBAR:
1. Back off the 2 screws a using a 17-mm
wrench.
2. Remove the HANDLEBAR.
The SIDE HANDLEBARS can be
inverted.
For the CENTER HANDLEBAR:
1. Disassemble the 2 SIDE HANDLEBARS.
2. Remove cable ST-1 from the CENTER
HANDLEBAR.
3. Remove the CENTER HANDLEBAR.
To reassemble the HANDLEBARS, carry out the
above steps in reverse order.
