STEPRACE: Service & Maintenance Manual - rev. 1.2
Page 7.19
7.15. DISASSEMBLING THE PEDAL CHAINS

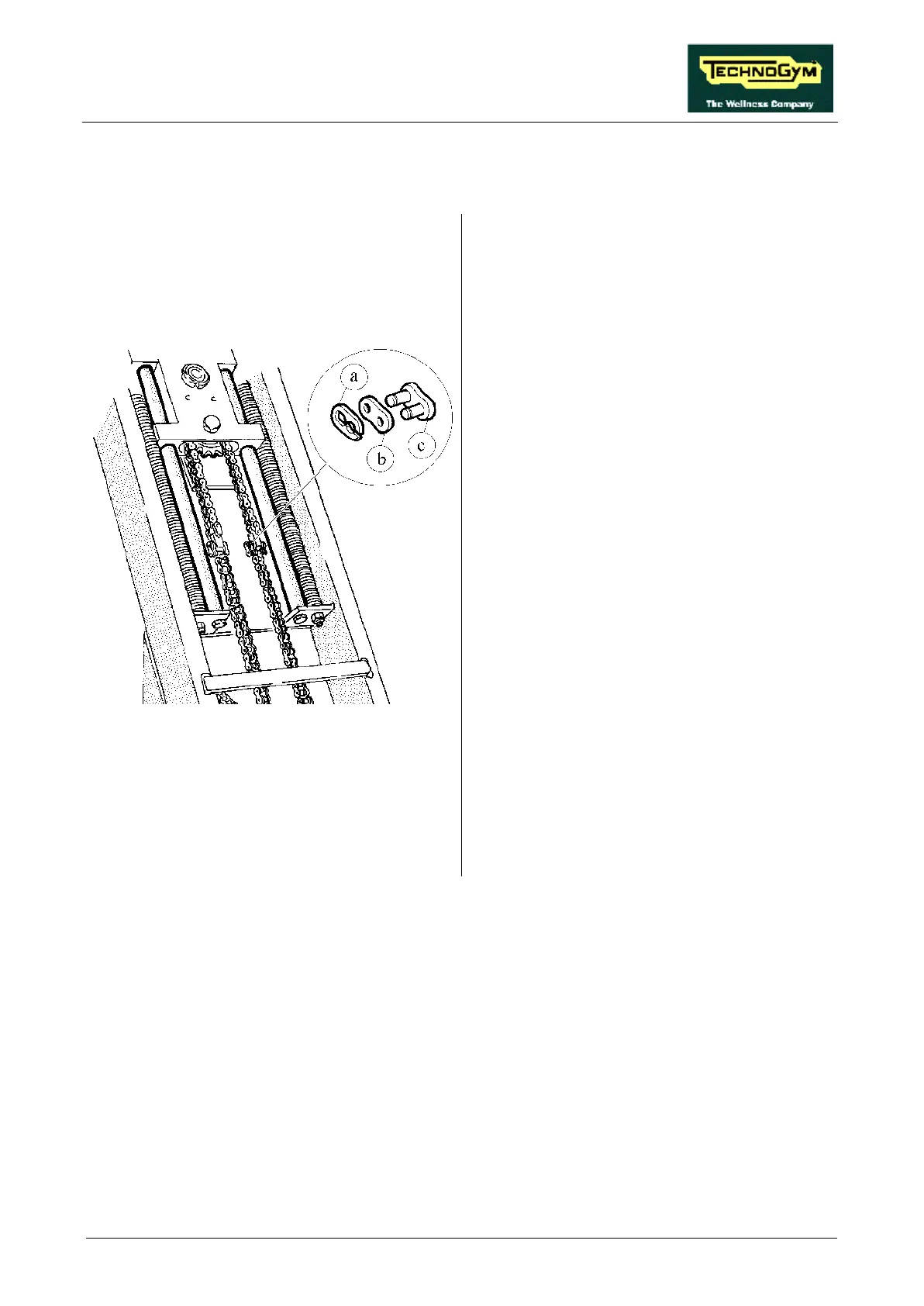

Figure 7.15-1
Carry out the procedures described in paragraphs
7.6. “Disassembling the upright guard”, 7.8.
“Disassembling the side guards” and 7.9.
“Disassembling the chain guard”.
1. Select stepping mode B (dependent stepping
motion).
To disassemble the PEDAL CHAINS, on both
ends of the CHAIN:
2. Release clip a from the link using the special
pliers.
3. Remove the connecting plate b.
4. Remove the connecting link c.
5. Remove the CHAINS:
• Those on the long stretch (CHAINS
connected to the levers) must be removed
from the front of the machine, whilst
manually accompanying the trailing end.
• Those on the short stretch (SLIDE
CHAIN) must be removed from the
sprocket.
To reassemble the CHAINS, carry out the above
steps in reverse order.
