STEPRACE: Service & Maintenance Manual - rev. 1.2
Page 8.7
8.7. ALIGNING THE PEDALS

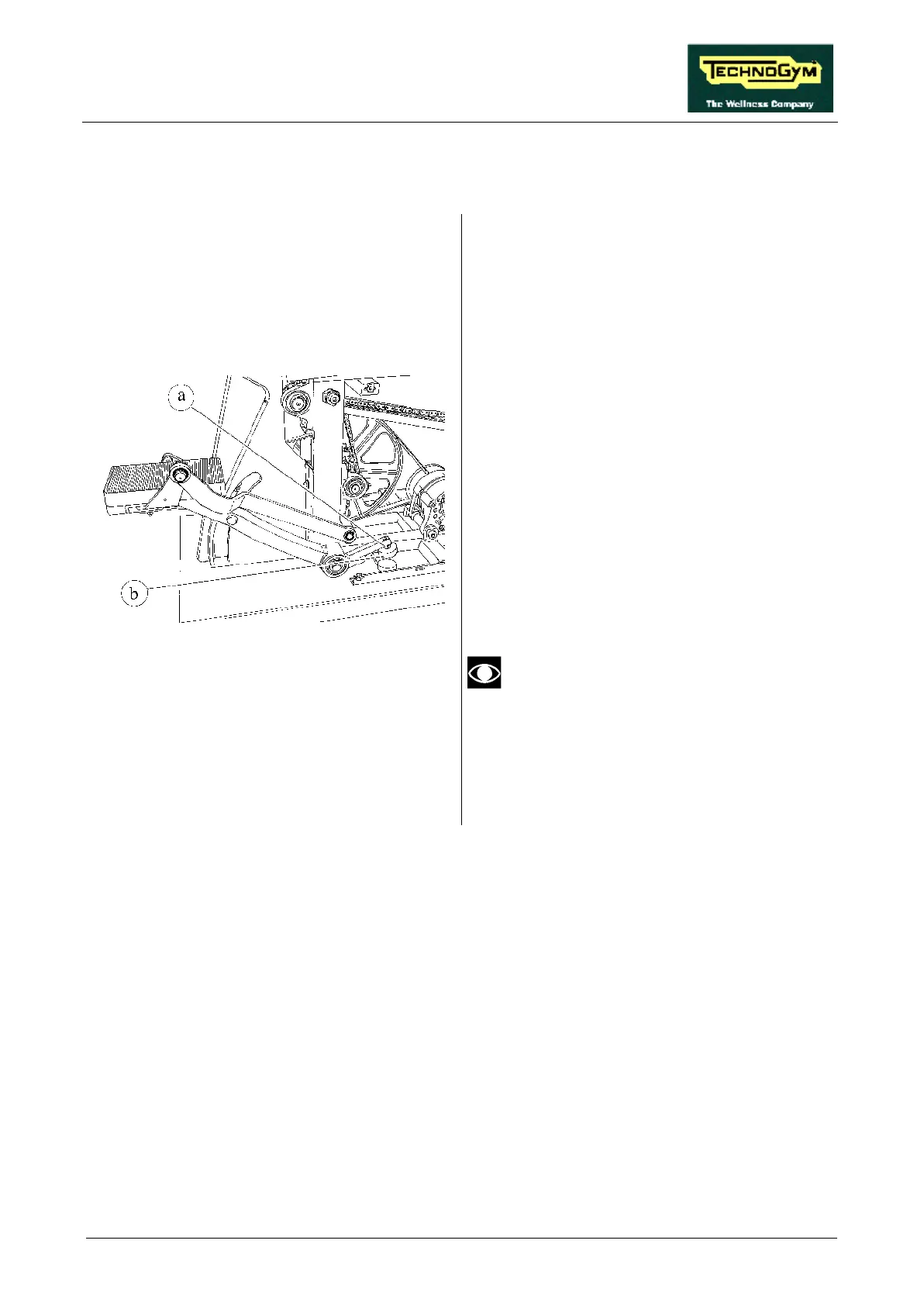

Figure 8.7-1
Carry out the procedures described in paragraph
7.8. “Disassembling the side guards”.
1. Select stepping mode A (independent
stepping motion).
2. Back off lock nut a using a 17-mm wrench.
3. Adjust the position of the limit stop pad b for
each PEDAL, locking it down or backing it
off so that:
• The PEDALS are at the same height.
• The PEDALS do not touch the machine
guards.
4. Select stepping mode B (dependent stepping
action) and check that the selection knob pin
engages the slide.
If the pin fails to engage the slide, turn
both limit stop pads in a clockwise
direction until the pin of the selection
knob correctly engages the slide.
5. Tighten lock nut a using a 17-mm wrench.
