STEPRACE: Service & Maintenance Manual - rev. 1.2
Page 7.11
7.8. DISASSEMBLING THE SIDE GUARDS

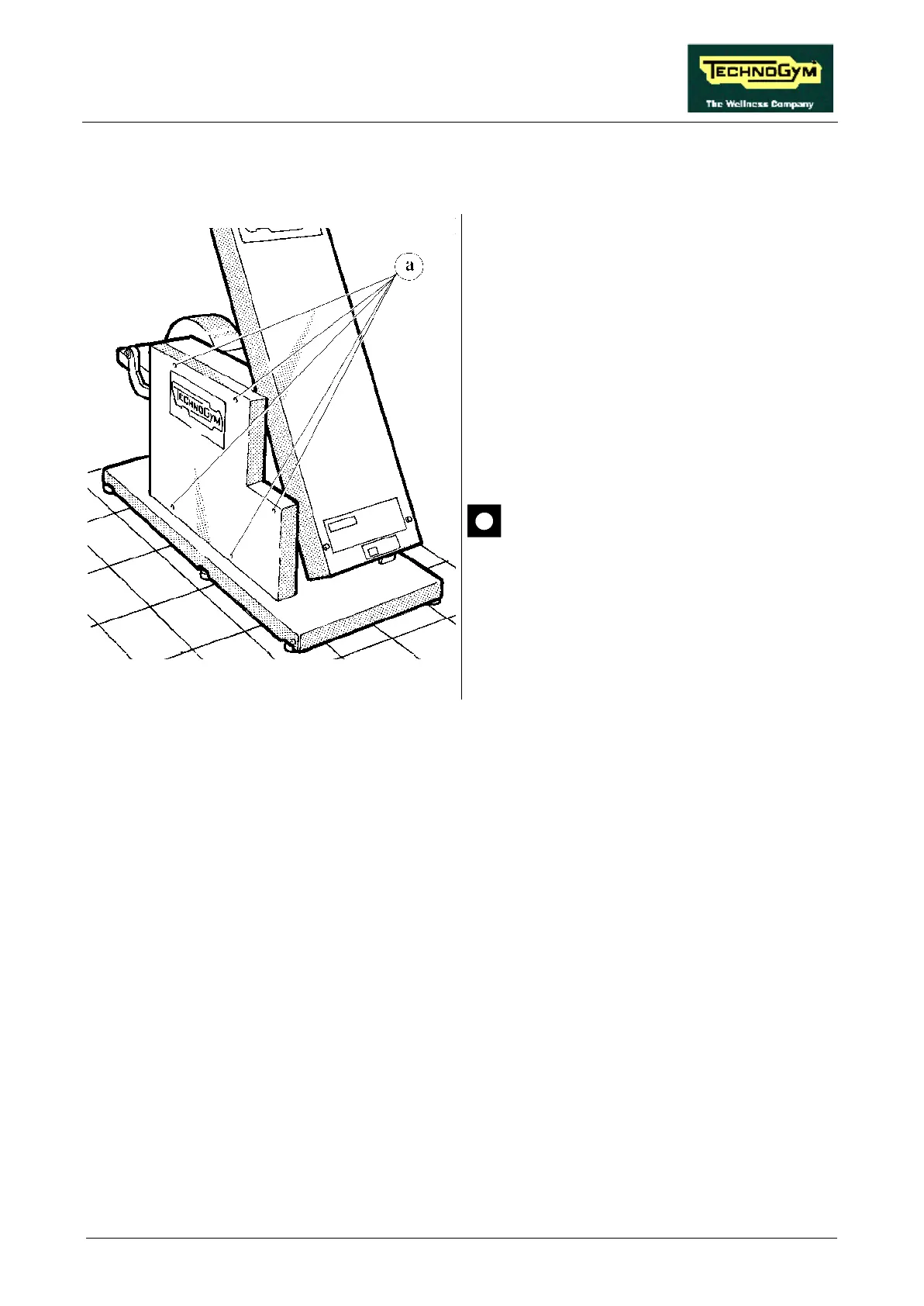

Figure 7.8-1
1. Turn off the machine and unplug the mains
lead from the wall outlet.
2. Select stepping mode B (dependent stepping
motion).
On either side of the machine:
3. Back off the 5 fixing screws a
GUARD, using a large Philips screwdriver.
4. Pull the SIDE GUARD upward to remove it.
The SIDE GUARDS are attached to the
machine frame with a strip of adhesive
tape.
To reassemble the SIDE GUARD, carry out the
above steps in reverse order.
