STEPRACE: Service & Maintenance Manual - rev. 1.2
Page 7.31
7.25. DISASSEMBLING THE SPRINGS

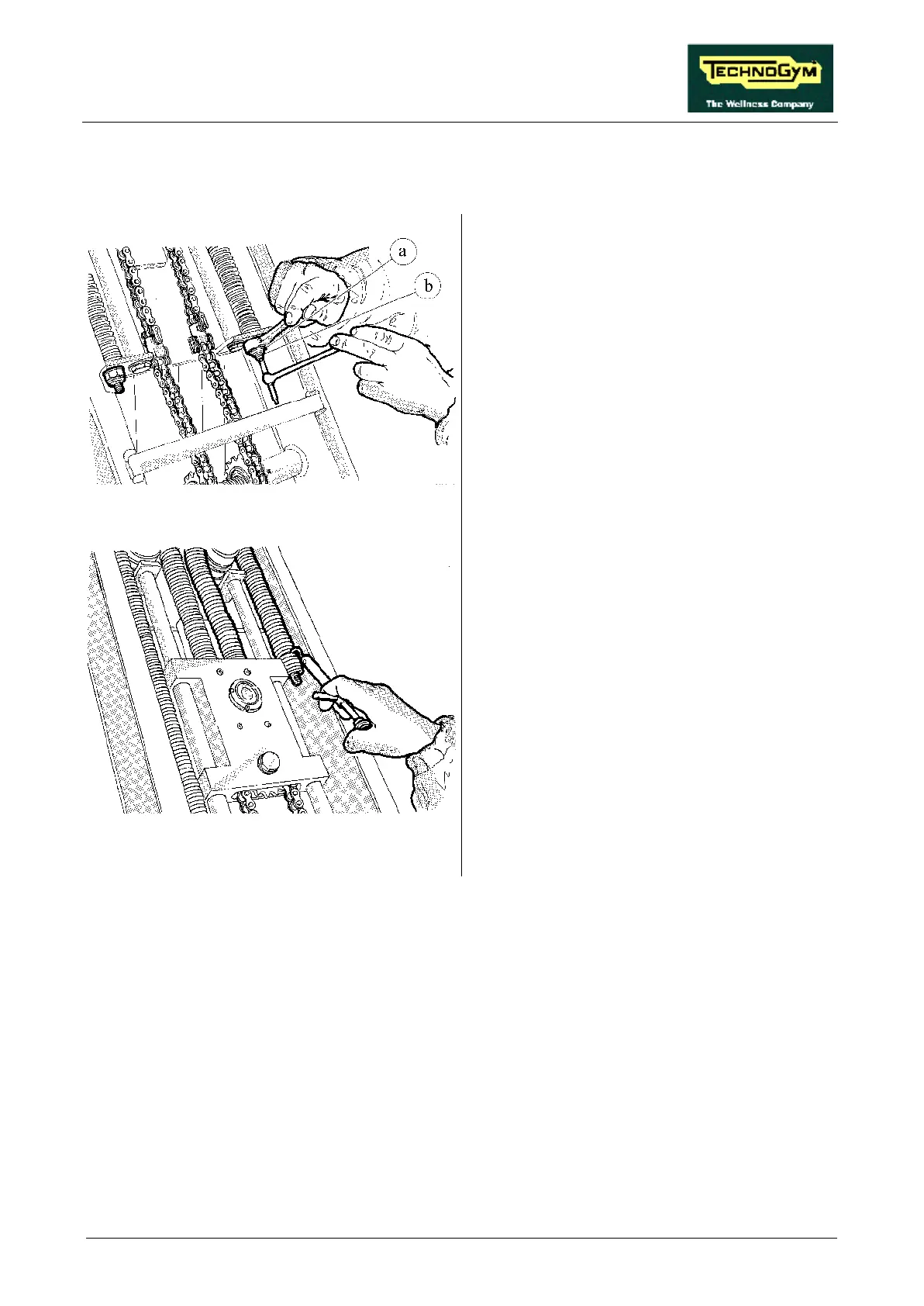

Figure 7.25-1
Carry out the procedure described in paragraph
7.6. “Disassembling the upright guard”.
1. Select stepping mode A (independent
stepping motion).
For each SPRING:
2. Using a hooked tool, extend the SPRING and
secure it to the frame.
3. Back off self-locking nut a using a 17-mm
wrench, while holding bar b in place with a
5-mm hex T wrench.
Figure 7.25-2
4. Using the hooked tool, slowly return the
SPRING to its rest position.
Continued on the following page →
